Male Jic X Male Metric W/Seal

Description & Features

Manufactured by Adaptall America, this Male Jic X Male Metric W/Seal ensures secure and efficient fluid connections in various industrial settings. Engineered with a straight steel construction, it supports robust performance and longevity.

On Side 1, the connector features a 9/16 - 18 UNF thread and a 3/8" male Jic type, while Side 2 is equipped with a M16 X 1.5 thread and a 16mm male metric type. These specifications assure versatile compatibility across different equipment and configurations.

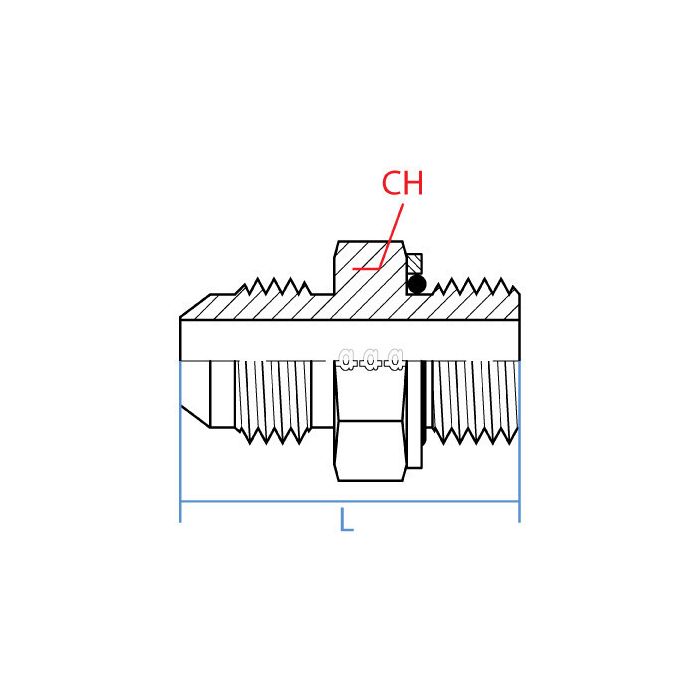

Its compact dimensions, including a width of 22mm and a length of 34.8mm, make it suitable for installations in constrained spaces. The product is designed without adjustable ends or additional components, keeping the focus on reliable fluid transfer.

Supplier Part Number: 9068-06-16

Specifications

CH Width 22mm	L Length 34.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size 16mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-06-16	Product Weight 0.10 lbs

Product Questions & Answers (1)

Question by: Kirk L on Dec 2, 2025, 1:32 PM

Will this fitting hold up okay in a hydraulic system for farm equipment?

Answer by: Customer Support on Dec 3, 2025, 9:46 PM

This steel fitting is designed for robust performance in industrial settings, which typically includes the demands of hydraulic systems on farm equipment.
