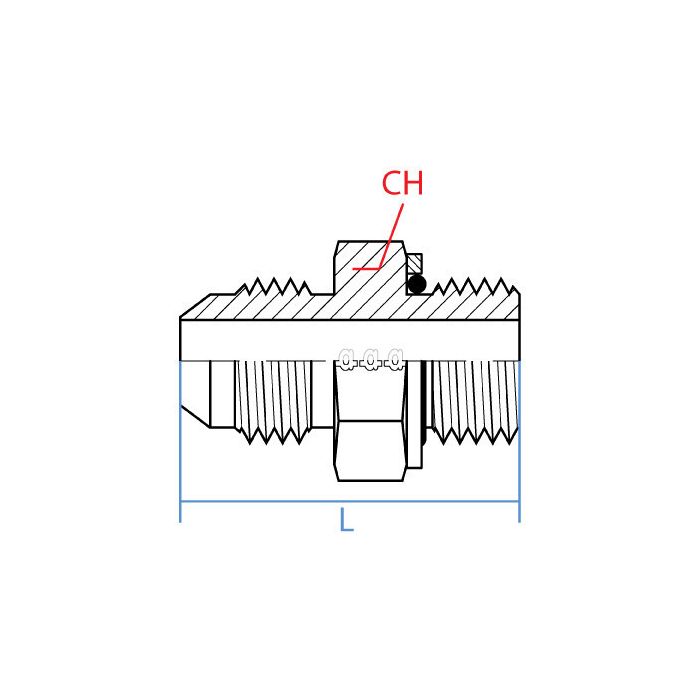

main product photo

Male Jic X Male Metric W/Seal

Ask A Question

Description & Features

The Male Jic X Male Metric W/Seal features a reliable and durable steel construction, designed to bridge different thread types in industrial settings. On one end, it has a 9/16 - 18 UNF thread (Jic, Male 3/8"), while the other end features an M12 X 1.5 thread (Metric, Male 12mm). Adaptall America ensures that this connector meets stringent specifications with a 24mm width and 37.3mm length. Its straightforward design promotes easy incorporation into technical assemblies, providing a secure and reliable connection. With precision engineering, this Male Jic X Male Metric W/Seal supports seamless integration, enhancing the efficiency of various mechanical assemblies.

Supplier Part Number: 9068-06-18

Specifications

Connection Size 1
9/16 in
Connection Size 2
18 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male Metric with O-ring
Dimension Standards
DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
24 mm
Material
Steel
Material Construction
Carbon Steel
Series
9068 Series
Thread Size
9/16-18 x M18x1.5

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Ronnie W on Aug 16, 2025, 7:45 PM
Got a piece of equipment here with an M12 x 1.5 metric port and I need to tie into a JIC line, this the right adapter for that?
Answer by: Customer Support on Aug 18, 2025, 9:21 AM
That's what this one's built for. One end is M12 x 1.5 metric male, and the other is a 9/16-18 UNF JIC male at 3/8 inch. Both ends are male, so you'd be threading this into female-ported fittings or hose ends on each side. The seal is included on the metric end, so you're not chasing down a separate crush washer or O-ring to make up that connection.
Question by: Kirk J on Sep 10, 2025, 1:40 PM
trying to hook a 9/16-18 JIC line to an M12 x 1.5 port. Is this the right adapter?
Answer by: Customer Support on Sep 12, 2025, 6:30 AM
For that mix of threads, it matches what you described. One side is a male JIC 9/16-18 UNF (3/8 inch) and the other side is a male metric M12 x 1.5 (12 mm), and it includes a seal on the metric end.
Question by: Earl C on Oct 20, 2025, 10:47 AM
Will this fitting hold up okay in a hydraulic system, or is it more for like, lower pressure stuff?
Answer by: Customer Support on Oct 22, 2025, 6:54 AM
Designed for industrial settings, this steel fitting can reliably handle the pressures typical of hydraulic systems.
