Male Jic X Male Metric W/Seal

Ask A Question

Description & Features

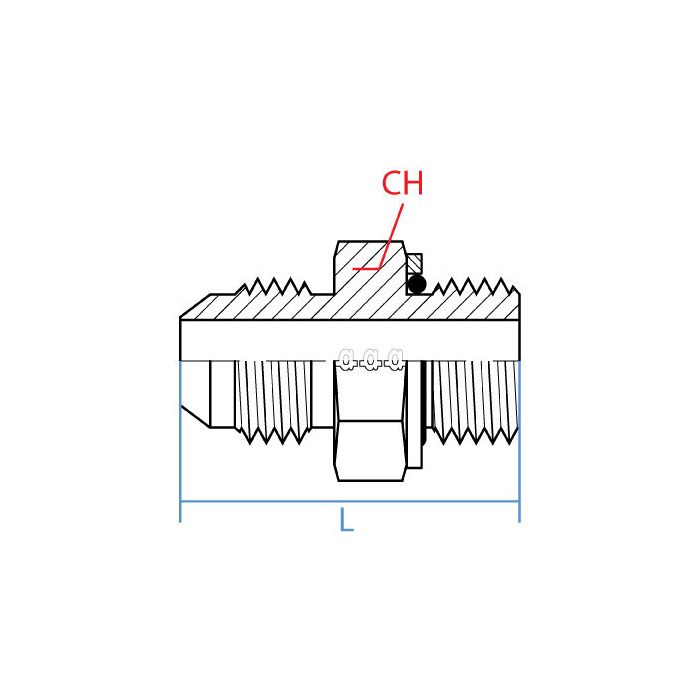

This straight steel adapter fitting features a male JIC (Joint Industry Council) end and a male Metric end with a seal. The JIC side has a 3/4 - 16 UNF thread and a 1/2" size. The Metric side features an M12 x 1.5 thread and a 12mm size. The Adaptall Ch Width is 20.5mm, and the Adaptall L Length is 36.9mm.

This Male JIC X Male Metric W/Seal adapter is suitable for connecting JIC and Metric hydraulic components.

SKU: 9068-08-12

Supplier Part Number (MPN): 9068-08-12

Specifications

Connection Size 1
3/4 in
Connection Size 2
12 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male Metric with O-ring
Dimension Standards
DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
9068 Series
Thread Size
3/4-16 x M12x1.5

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Merle S on Nov 15, 2025, 7:52 AM
got a hose end that’s 3/4-16 UNF JIC male, will this screw right into it and give me an M12 x 1.5 male on the other side?
Answer by: Customer Support on Nov 16, 2025, 6:32 PM
For tying two standards together, that’s exactly what it’s built for: one end is a male JIC with 3/4 - 16 UNF threads in a 1/2 inch size, and the other end is a male Metric M12 x 1.5 in a 12 mm size with a seal.
Question by: Lyle P on Oct 28, 2025, 9:45 AM
Got a metric port on a hydraulic block and need to tie into a JIC line, this a straight shot or is there any offset to it?
Answer by: Customer Support on Oct 29, 2025, 1:46 PM
Straight through, no offset. The fitting runs male JIC on one end and male Metric on the other in a direct inline configuration, so it won't add any angular deviation to your hydraulic connections. The JIC side is 3/4-16 UNF at a 1/2" size, and the Metric end is M12 x 1.5 at 12mm. Overall length comes in at 36.9mm, so factor that into your clearance before you go wrenching it in.
