Male Jic X Male Metric W/ Seal

Description & Features

The Male Jic X Male Metric W/ Seal from Adaptall America is crafted for precise industrial applications. Manufactured from durable steel, this straight adapter ensures long-lasting performance.

This adapter features a male JIC 1/2" connection with a 3/4 - 16 UNF thread on one side and a male metric M14 x 1.5 connection on the other side. It has a width of 22mm and a length of 36.8mm, providing a robust solution for connecting various components.

Constructed with no adjustable or ratcheting parts, it maintains a simple and effective structure. It does not include color coding, check valves, or switch connectors, focusing on its role as a purely mechanical fitting.

Additionally, this product does not come with a battery, case, diode, or thread sealant, and does not require calibration, mandrels, or mounting. Its straightforward design is both efficient and functional.

MPN: 9068-08-14

Supplier Part Number: 9068-08-14

Specifications

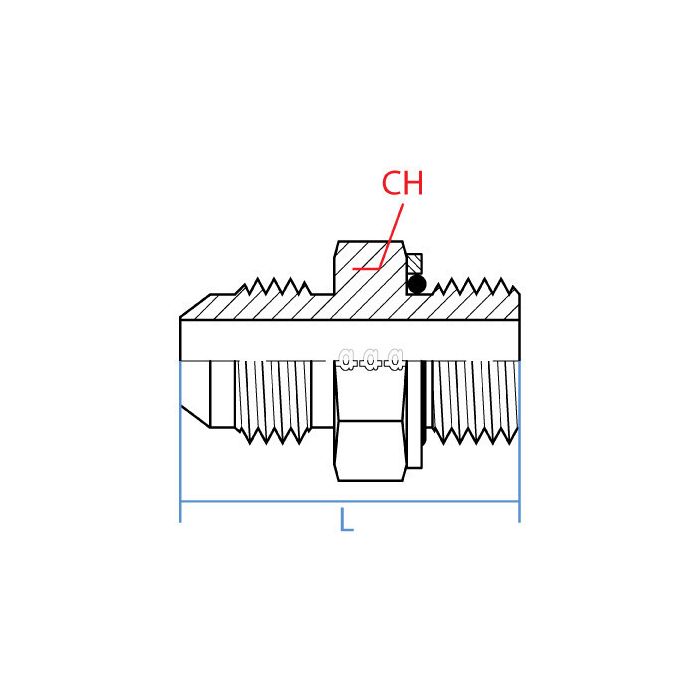

CH Width 22mm	L Length 36.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-08-14	Product Weight 0.11 lbs

Product Questions & Answers (3)

Question by: Phil O on Sep 13, 2025, 9:39 AM

adapter's only 36.8mm long, that gonna be enough thread engagement on both ends to hold up in a high-vibration line?

Answer by: Customer Support on Sep 14, 2025, 1:11 PM

At 36.8mm total length, there's enough body to achieve proper thread engagement on both the 3/4-16 UNF JIC side and the M14 x 1.5 metric side under normal installation torque. The straight, fixed geometry means no articulating joints to loosen over time, which actually helps in vibration-prone setups. As long as both mating ports are clean and the seal is seated correctly on the metric end, you should get a solid, leak-free connection.

Question by: Patty M on Dec 31, 2025, 7:43 AM

Will this here fitting hold up okay for connecting some hydraulic lines on my tractor? Just wanna make sure it's tough enough.

Answer by: Customer Support on Jan 2, 2026, 6:00 AM

Made from durable steel, this adapter should provide long-lasting performance in hydraulic applications.

Question by: Curt R on Apr 15, 2025, 1:57 PM

got a hose end thats 1/2 JIC with the 3/4-16 threads. will this screw right into a metric port thats M14 x 1.5?

Answer by: Customer Support on Apr 17, 2025, 8:58 AM

For joining those two standards, it’s the right style of adapter. One side is a male JIC 1/2 inch with 3/4-16 UNF threads, and the other side is a male metric M14 x 1.5, so it bridges between them in a straight fitting.
