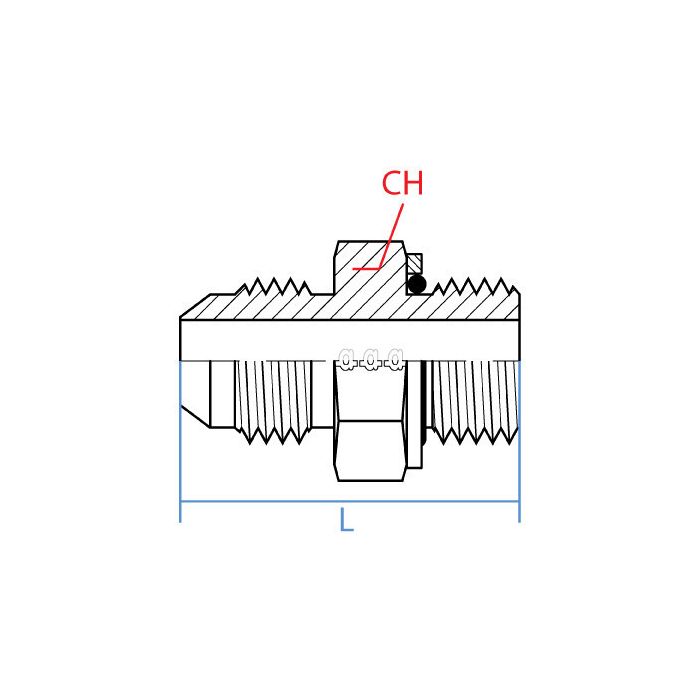

main product photo

Male Jic X Male Metric W/Seal

Ask A Question

Description & Features

Engineered by Adaptall America, this steel connector offers durability with its straight design. The Male Jic X Male Metric W/Seal connects JIC 3/4 - 16 UNF to metric M16 X 1.5 systems, making it suitable for robust industrial applications.

Featuring a length of 38.3mm and width of 22mm, this connector ensures a reliable fit. Both sides are male, one being 1/2" JIC and the other 16mm metric, providing compatibility for a variety of setups.

This component is designed without adjustable features, batteries, or remote control capabilities, focusing on structural integrity and performance. No additional components such as check valves or electrical flags are included, simplifying usage in technical contexts.

MPN: 9068-08-16

Supplier Part Number: 9068-08-16

Specifications

Connection Size 1
3/4 in
Connection Size 2
S16
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male Metric with O-ring
Dimension Standards
DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
6000 psi
Series
9068 Series
Thread Size
3/4-16 x M16x1.5

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Todd H on Feb 17, 2026, 9:39 PM
Got a metric M16 x 1.5 port on a hydraulic block and need to tie into a JIC line on the other end. this fitting gonna work for that?
Answer by: Customer Support on Feb 19, 2026, 9:57 AM
That's exactly the application this connector handles. One end is 1/2" JIC with a 3/4-16 UNF thread, and the other side is 16mm metric at M16 x 1.5. Both ends are male, so you'd be threading each side directly into its respective female port. It's a straight connector, steel construction, 38.3mm long and 22mm wide, made by Adaptall. No adapters or extra hardware needed to make that male-to-male JIC-to-metric connection work.
Question by: Shane A on Oct 12, 2025, 1:13 PM
got a hose end that’s 3/4-16 UNF JIC on one side and the machine port is M16x1.5. is this the right adapter?
Answer by: Customer Support on Oct 14, 2025, 7:32 AM
Match-up looks right for this connector. One end is a male JIC with a 3/4-16 UNF thread callout, and the other end is a male metric M16 x 1.5, so it bridges those two thread systems in a straight steel fitting.
