Male Jic X Male Metric W/Seal

Description & Features

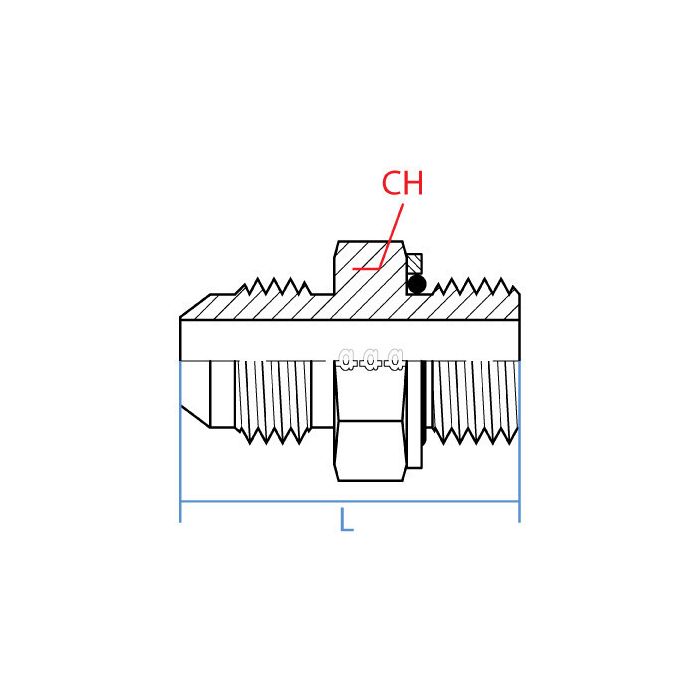

This connector is engineered for reliability and precision in industrial settings. Built from high-quality steel, it offers a straight, compact design with a width of 24mm and a length of 39mm.

The Male Jic X Male Metric W/Seal features a 3/4 - 16 UNF thread on Side 1 and an M18 X 1.5 thread on Side 2, ensuring a seamless connection between components. It is devoid of additional features such as check valves or remote controls, simplifying its functionality.

Manufactured by Adaptall America, this fitting is ideal for applications requiring precise, durable connections. With its robust construction and straightforward design, it meets the demands of specialized industrial environments.

Supplier Part Number: 9068-08-18

Specifications

Connection Size 1 3/4 in	Connection Size 2 18 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male Metric with O-ring	Dimension Standards DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 24 mm	Material Steel	Material Construction Carbon Steel	Maximum Operating Pressure 6000 psi	Series 9068 Series	Thread Size M18x1.5 x 3/4-16

Product Questions & Answers (1)

Question by: Brenda H on Jun 11, 2025, 7:30 AM

got a hose end that’s 3/4-16 UNF JIC on one side and the other side is M18 x 1.5. is this the straight adapter for that?

Answer by: Customer Support on Jun 13, 2025, 6:19 AM

For connecting those two thread types in a straight fitting, that is exactly what this part is. Side 1 is a male JIC with a 3/4 - 16 UNF thread, and Side 2 is a male metric with an M18 x 1.5 thread, with a seal on the metric side.
