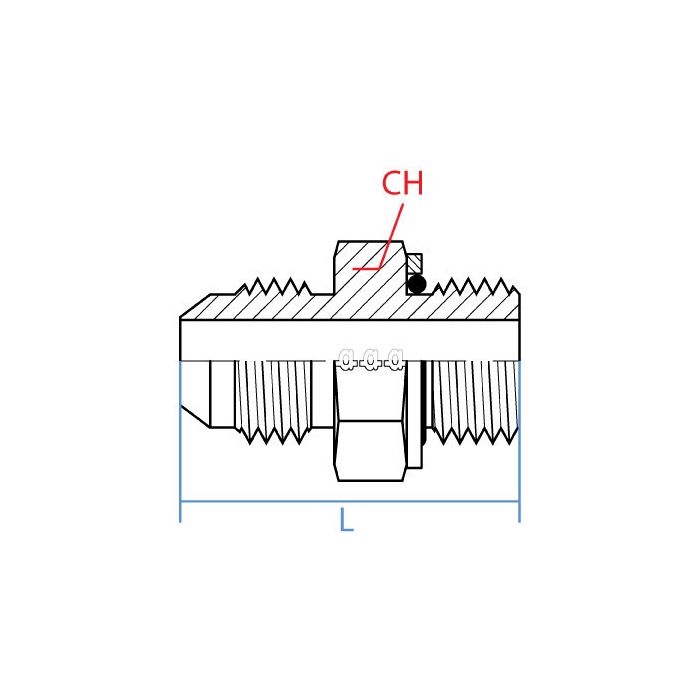

main product photo

Male Jic X Male Metric W/ Seal

Ask A Question

Description & Features

Crafted from high-quality steel, this robust connector from Adaptall America is designed to ensure reliable performance in industrial settings. The Male Jic X Male Metric W/ Seal features a straight shape for a secure and efficient connection between different systems.

The Jic side has a thread size of 3/4 - 16 UNF, while the metric side features an M22 X 1.5 thread, accommodating 1/2" and 22mm sizes respectively. Measuring 42.1mm in length and 30mm in width, this component is tailored for accurate fitment in demanding applications.

It lacks adjustable, color-coded, or additional features, simplifying its installation and usage. This makes it an ideal choice for industrial environments requiring stringent component specifications.

Supplier Part Number: 9068-08-22

MPN: 9068-08-22

Specifications

Connection Size 1
3/4 in
Connection Size 2
22 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male Metric with O-ring
Dimension Standards
DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
6000 psi
Series
9068 Series
Thread Size
M22x1.5 x 3/4-16

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Tony A on Aug 30, 2025, 8:36 AM
got a hose end that’s 3/4-16 JIC on one side and i need to tie into M22 x 1.5 on the other. is this the right adapter?
Answer by: Customer Support on Aug 31, 2025, 7:26 PM
Match the threads and sizes and it lines up with what you described. One end is male JIC with 3/4 - 16 UNF threads and a 1/2 inch size callout, and the other end is male metric M22 x 1.5 with a 22 mm size callout.
