Male Jic X Male Metric W/ Seal

Description & Features

The Male Jic X Male Metric W/ Seal fitting, designed by Adaptall America, is constructed from durable steel material and features a straight shape for effective connections in industrial settings.

The connector includes a 7/8 - 14 UNF thread on Side 1 with a Male 5/8" Jic type, ensuring a secure fit. On Side 2, the fitting is equipped with an M18 x 1.5 Male Metric type, providing versatility and compatibility across various systems.

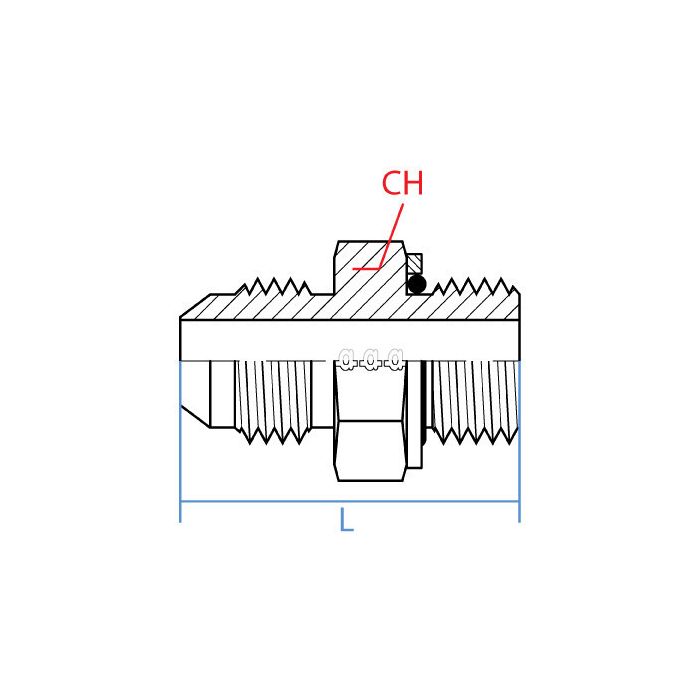

With dimensions of 24mm width and 42.2mm length, it is both compact and reliable. The robust steel construction supports long-term performance in demanding environments.

MPN: 9068-10-18

Supplier Part Number: 9068-10-18

Specifications

Connection Size 1 7/8 in	Connection Size 2 18 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male Metric with O-ring	Dimension Standards DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 24 mm	Material Steel	Material Construction Carbon Steel	Maximum Operating Pressure 6000 psi	Series 9068 Series	Thread Size 7/8-14, M18x1.5

Product Questions & Answers (2)

Question by: Harvey S on Apr 7, 2025, 8:47 AM

got a hose end that’s 7/8-14 UNF JIC male, will this adapter mate up to it and still give me an M18 x 1.5 male on the other side?

Answer by: Customer Support on Apr 9, 2025, 6:14 AM

On the JIC side, you are working with a male 5/8 inch JIC with a 7/8-14 UNF thread. The other end is a male metric M18 x 1.5, and it includes a seal on that metric side.

Question by: Vince G on Mar 12, 2026, 10:43 AM

Is that 42.2mm length the total length, or just the threaded part?

Answer by: Customer Support on Mar 13, 2026, 1:26 PM

That's the overall length from end to end.
