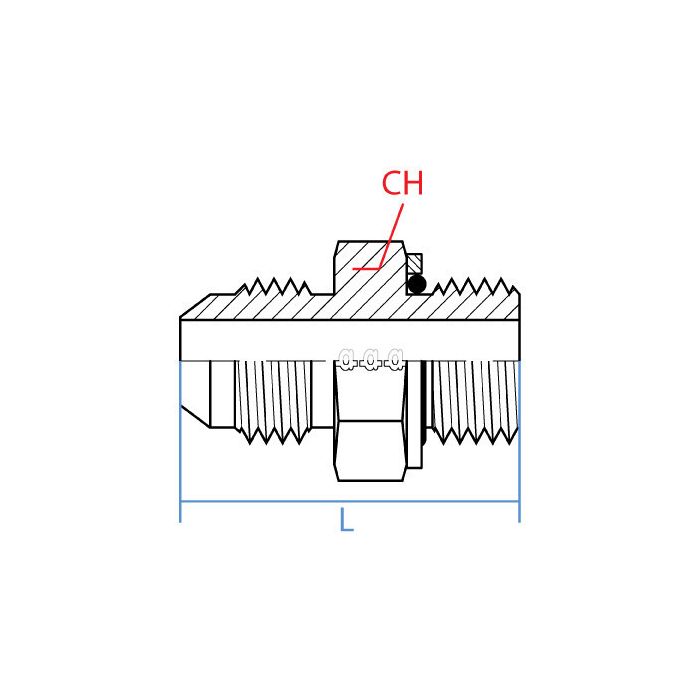

main product photo

Male Jic X Male Metric W/Seal

Ask A Question

Description & Features

This high-quality adapter from Adaptall America is crafted from durable steel and designed for industrial applications. One end features a 5/8" JIC male connector (7/8 - 14 UNF), while the other end has a 20mm metric male connector (M20 X 1.5).

Engineered for precision and reliability, it is 44mm in length with a 27mm width across the hex. The straightforward design and absence of additional components such as color coding, calibrations, or ratcheting mechanisms simplify installation and usage.

The robust steel construction ensures long-lasting performance and resistance to wear. Perfect for technical settings requiring secure, leak-proof connections, this straight adapter excels under challenging conditions without compromising its core functionality.

Supplier Part Number: 9068-10-20

Specifications

Connection Size 1
7/8 in
Connection Size 2
20 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male Metric with O-ring
Dimension Standards
DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
6000 psi
Series
9068 Series
Thread Size
7/8-14 x M20x1.5

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Donna J on Nov 8, 2025, 2:33 PM
got a hose end that’s 5/8 JIC male, will this adapter mate up with that and go into an M20 x 1.5 port?
Answer by: Customer Support on Nov 9, 2025, 3:47 PM
On the JIC side, it has a 5/8 inch male with 7/8-14 UNF threads. The other end is a 20 mm metric male with M20 x 1.5 threads and it includes a seal on that metric side, so it’s meant to thread into an M20 x 1.5 female connection.
Question by: Bobby W on May 8, 2025, 12:37 PM
Will this adapter hold up in a hydraulic system on a tractor, or is it more for lighter-duty stuff?
Answer by: Customer Support on May 9, 2025, 8:08 PM
This adapter is constructed from durable steel, making it suitable for demanding industrial applications like hydraulic systems. Its robust design ensures it can withstand challenging conditions without compromising its core functionality.
Question by: Carl F on Dec 12, 2025, 12:00 PM
Got a metric port on a pump housing and need to tie into a JIC line, this straight adapter work for something like that?
Answer by: Customer Support on Dec 13, 2025, 1:56 PM
That's the kind of situation this fits. One end threads into your M20 x 1.5 metric port and the other connects to your 5/8" JIC male line, so it bridges those two standards without any extra fittings in between. It's a straight configuration, steel construction, 44mm long with a 27mm hex width for wrenching. The metric side includes a seal, so you're not relying on thread alone to hold pressure at that connection.
