Male Jic X Male Metric W/Seal

Ask A Question

Description & Features

Adaptall America offers a durable Male Jic X Male Metric W/Seal for industrial applications. This steel straight adapter, equipped with a 7/8" - 14 UNF JIC fitting on one side and a M22 x 1.5 metric fitting on the other, is designed for easy integration into varied mechanical systems.

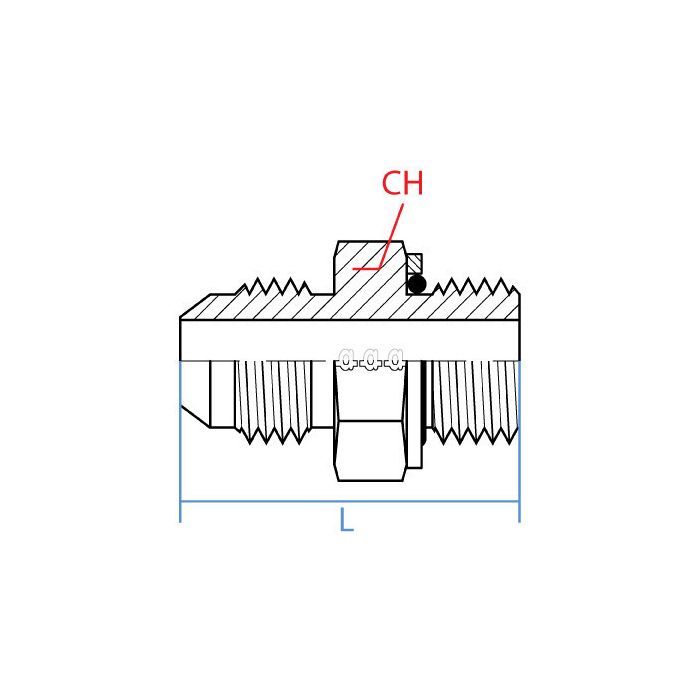

Manufactured from high-grade steel, this connector is built to withstand demanding conditions. It features a compact design with a CH width of 30mm and a total length of 44.4mm, making it ideal for applications with limited space.

The adapter is engineered without an adjustable end or calibration, ensuring a straightforward design that requires minimal maintenance.

With no color coding and absence of electrical elements, it underscores mechanical robustness and simplicity.

Perfect for industries needing precise and secure connections, this adapter supports the longevity and performance of machinery.

Supplier Part Number: 9068-10-22

Specifications

Connection Size 1
7/8 in
Connection Size 2
22 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male Metric with O-ring
Dimension Standards
DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
6000 psi
Series
9068 Series
Thread Size
7/8-14 x M22x1.5

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Ross S on Sep 13, 2025, 3:49 PM
Got a metric port on a European-built hydraulic unit and need to adapt it over to JIC on the other end. This a straight shot, no funny angles or nothin?
Answer by: Customer Support on Sep 14, 2025, 5:35 PM
Straight adapter, no bends or offsets. One end is 7/8-14 UNF JIC male, the other is M22 x 1.5 metric male with a seal included. Total length runs 44.4mm and the hex width is 30mm, so it's a compact unit that fits well in tight quarters. If your port matches those specs on both ends, you're good to go.
