Male Jic X Male Metric W/Seal

Ask A Question

Description & Features

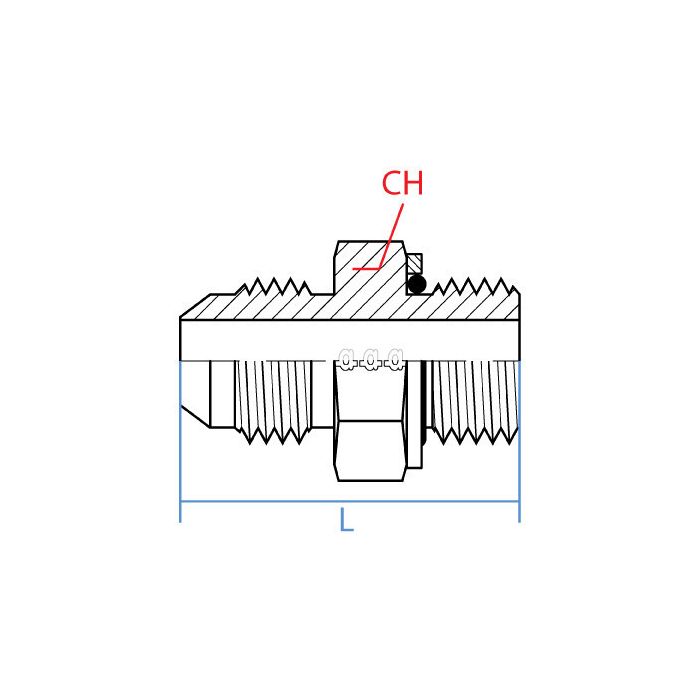

Designed for rigorous industrial applications, this straight adapter offers secure and reliable fittings. Crafted from high-quality steel, it features a 1-1/16 - 12 UN thread on the Jic end and M22 X 1.5 thread on the metric end. The Male Jic X Male Metric W/Seal ensures precision with a CH width of 30mm and a length of 47.3mm.

Its straightforward male-to-male configuration aids seamless integration with existing setups, enhancing installation efficiency. This adaptor is not equipped with adjustable or ratcheting components, simplifying usage in high-pressure scenarios.

With no color coding, battery inclusion, calibration, machine-mounting, or remote control embedded, it meets robust performance standards in industrial environments. Its precise engineering and dependable construction make it a trusted choice for complex mechanical systems.

Supplier Part Number: 9068-12-22

Specifications

Connection Size 2
22 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male Metric with O-ring
Dimension Standards
DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
6000 psi
Series
9068 Series
Thread Size
1-1/16-12 x M22x1.5

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Joyce W on Jun 21, 2025, 1:16 PM
Got a metric port on my hydraulic manifold and need to tie into a JIC line, this straight adapter the right piece for that?
Answer by: Customer Support on Jun 22, 2025, 7:21 PM
Yeah, that's exactly what this fitting handles. One end is M22 x 1.5 metric male, the other is 1-1/16-12 UN JIC male, so it bridges those two thread standards in a single straight adapter. It comes with a seal included, which takes care of the metric side connection. Steel construction, 47.3mm long, so make sure you've got clearance in your assembly before you commit.
Question by: Dean M on Sep 20, 2025, 7:53 AM
Will this fitting hold up in a hydraulic system running around 3000 psi?
Answer by: Customer Support on Sep 22, 2025, 6:04 AM
Designed for rigorous industrial use, this adapter is constructed from high-quality steel to handle demanding high-pressure scenarios.
