Male Jic X Male Metric W/Seal

Ask A Question

Description & Features

The Adaptall America Male Jic X Male Metric W/Seal is designed for precision in demanding industrial settings. Featuring a robust steel construction, this straight-shaped connector provides reliable performance.

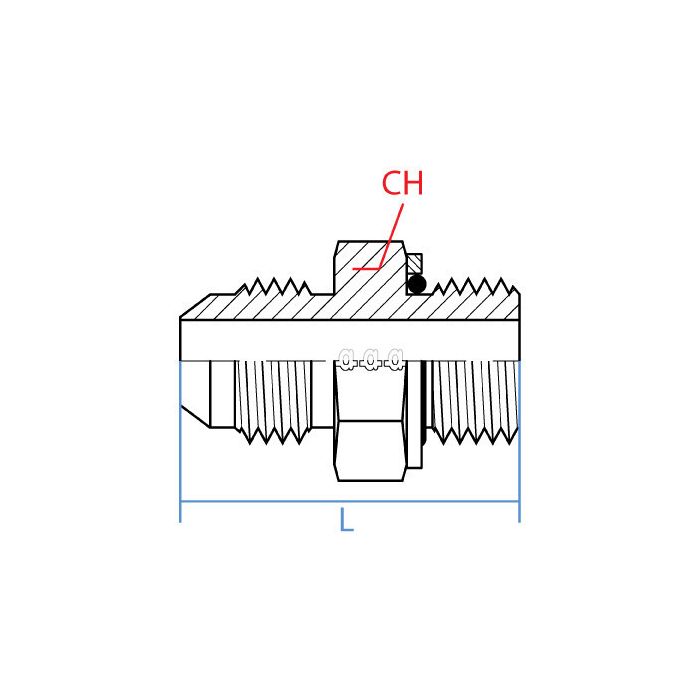

It has a 1-1/16 - 12 UN Jic male thread on one side and an M26 X 1.5 metric male thread on the other. The total length is 51.8mm, and the CH width is 36mm, ensuring a secure fit and optimal function under various conditions.

This component does not include adjustable ends, switches, or color-coding, making it ideal for applications requiring secure, high-quality connections without additional calibration or adjustment.

MPN: 9068-12-26

Supplier Part Number: 9068-12-26

Specifications

Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male Metric with O-ring
Dimension Standards
DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
36 mm
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
6000 psi
Series
9068 Series
Thread Size
1-1/16-12 x M26x1.5

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Shawn H on Nov 19, 2025, 6:59 PM
Got a metric port on my hydraulic manifold that's M26 x 1.5 and need to tie into a JIC line on the other end. This the right fitting for that?
Answer by: Customer Support on Nov 21, 2025, 6:22 AM
That's what this one's built for. One end is a 1-1/16-12 UN JIC male thread, and the other is an M26 x 1.5 metric male with a seal included. Steel construction, straight body, 51.8mm long with a 36mm wrench flat. If your manifold port and your JIC line both match those callouts, you're in good shape.
Question by: Eddie B on Dec 8, 2025, 7:49 PM
got a hose end that’s 1-1/16 - 12 UN JIC male on it. Is this the right adapter to go over to M26 x 1.5 metric male?
Answer by: Customer Support on Dec 10, 2025, 9:25 AM
For a straight male-to-male hookup, it matches those thread callouts: 1-1/16 - 12 UN JIC male on one side and M26 x 1.5 metric male with seal on the other.
