Male Jic X Male Metric W/Seal

Description & Features

Constructed from premium steel this straight Male Jic X Male Metric W/Seal offers durability for demanding industrial applications. It incorporates a 1-5/16 - 12 UN thread on Side 1 and an M27 X 2.0 thread on Side 2 ensuring compatibility with various fittings.

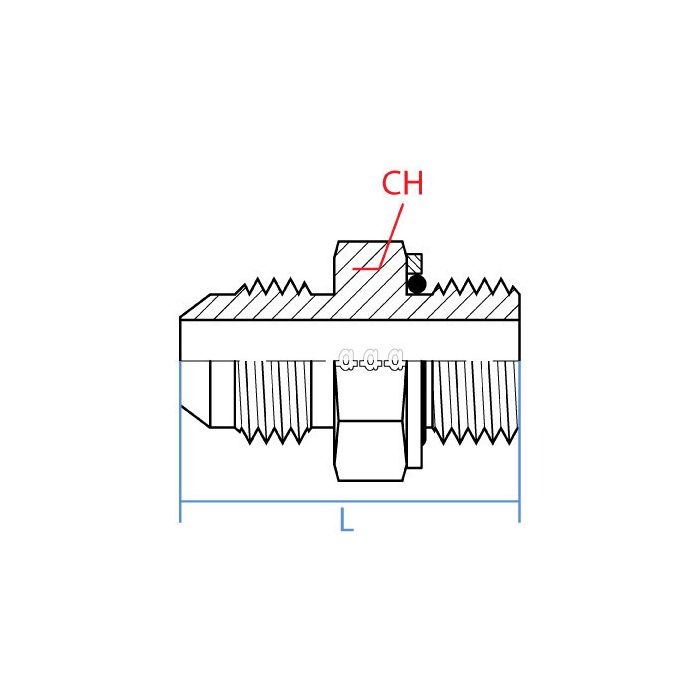

Specifically designed by Adaptall America the part features dimensions such as a CH Width of 36mm and an L Length of 53.3mm. It is particularly suited for setups where an adjustable end and thread sealant are not required.

The straightforward design ensures a robust seal between Jic and metric connections without the need for color coding check valves or electrical features. This component is essential for maintaining secure and leak-resistant connections in critical environments.

Supplier Part Number: 9068-16-27

Specifications

Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male Metric with O-ring	Dimension Standards DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 36 mm	Material Steel	Material Construction Carbon Steel	Maximum Operating Pressure 6000 psi	Series 9068 Series	Thread Size 1-5/16-12 x M27x2

Product Questions & Answers (1)

Question by: Neil C on Jun 14, 2025, 4:53 PM

Got a metric port on a manifold block that I need to tie into a JIC line, this a straight-through adapter or does it got some kind of angle to it?

Answer by: Customer Support on Jun 16, 2025, 11:13 AM

Straight through, no angle. Both ends come off the same centerline, so it'll thread right in without any offset or repositioning of your line. Side one is a 1-5/16-12 UN JIC male and side two is an M27 x 2.0 metric male, and the overall length runs 53.3mm with a 36mm wrench flat. Clean, direct connection between those two thread types with no fuss.
