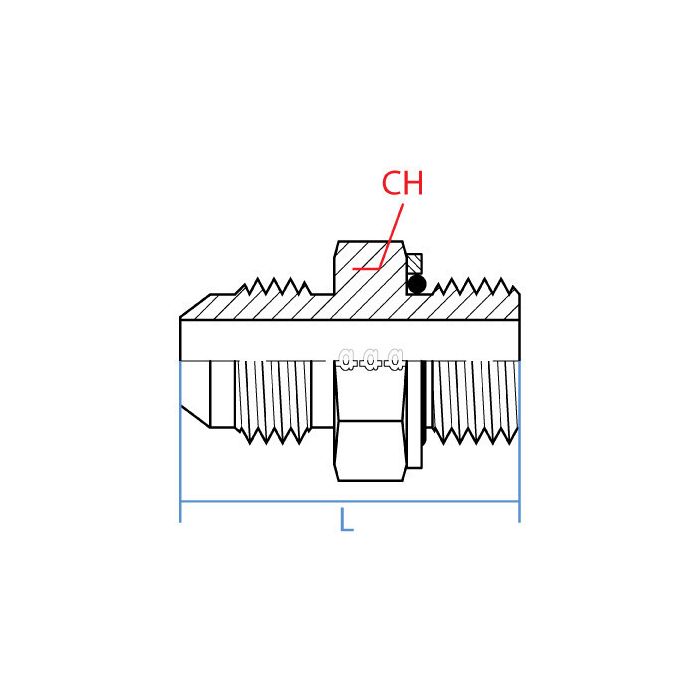

main product photo

Male Jic X Male Metric W/ Seal

Ask A Question

Description & Features

Engineered for precision by Adaptall America the Male Jic X Male Metric W/ Seal offers an effective and durable connection solution. Crafted from high-quality steel this straight connector ensures reliability and longevity in various industrial environments.

The male JIC end measures 1-5/8 - 12 UN while the male metric end is M33 X 2.0 making it versatile for a range of applications. Its dimensions are 41mm in width and 58mm in length providing robust performance for demanding tasks.

This component is straightforward and reliable ensuring easy and efficient installation without the need for an adjustable end ratcheting mechanism or thread sealant. It's designed to accommodate stringent industrial requirements with consistent fitting solutions.

Supplier Part Number: 9068-20-33

MPN: 9068-20-33

Specifications

Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male Metric with O-ring
Dimension Standards
DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9068 Series
Thread Size
1-5/8-12 x M33x2

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Brent H on Jan 31, 2026, 9:57 AM
What thread specs am I working with on both ends of this fitting, trying to make sure it'll mate up right before I order a handful of 'em.
Answer by: Customer Support on Feb 1, 2026, 10:08 AM
One end carries a 1-5/8 - 12 UN male JIC thread, and the other is a male metric M33 X 2.0. Both ends are male, so you'll need female counterparts on whatever you're connecting to. No adjustable end on this one, and no thread sealant required since the metric side includes a seal.
Question by: Ralph G on May 31, 2025, 3:47 PM
What kind of steel is this made out of? Just wondering how it holds up.
Answer by: Customer Support on Jun 2, 2025, 6:14 AM
Crafted from high-quality steel, this connector is built for reliability and long service life in industrial settings.
