90* Mjic X Male Metric Elbow

Description & Features

Crafted from durable steel, this 90° elbow connector seamlessly integrates JIC and metric threads, making it ideal for a wide range of industrial hydraulic systems. The precision-engineered design features a 3/4 - 16 UNF JIC male connection on one side and a M20 x 1.5 metric male connection on the other, ensuring compatibility across diverse equipment setups. With a compact length of 40mm and widths of 22mm and 27mm at each connection, this elbow provides a reliable solution for tight spaces without sacrificing performance.

Designed by Adaptall, this 90° Mjic X Male Metric Elbow facilitates efficient fluid transfer and minimizes the risk of leaks, thanks to its robust construction and secure fit. Whether you're updating existing equipment or designing new systems, this elbow is an essential component for maintaining optimal flow and pressure in hydraulic applications.

SKU: 9069-08-20

Supplier Part Number (MPN): 9069-08-20

Specifications

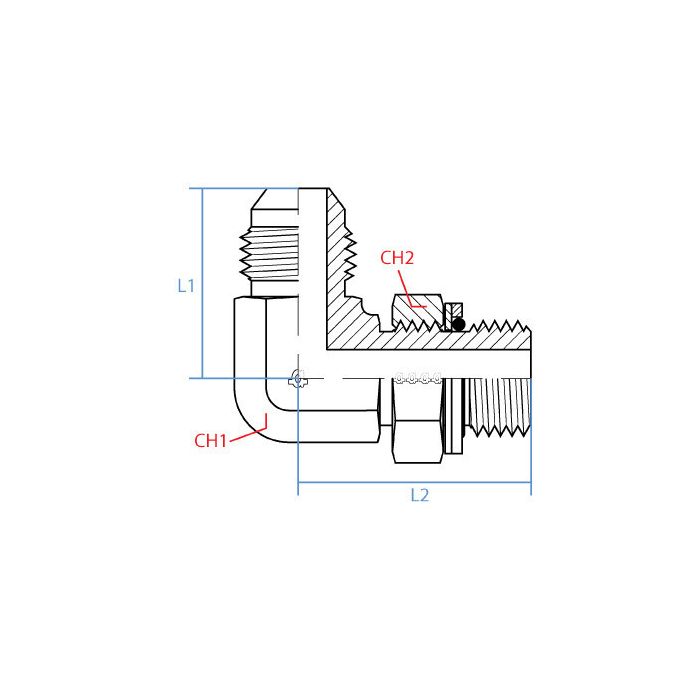

CH1 Width 22mm	CH2 Width 27mm	L1 Length 40mm	L2 Length 33mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size 20mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9069-08-20	Product Weight 0.35 lbs

Product Questions & Answers (2)

Question by: Todd D on Oct 19, 2025, 11:54 AM

Will this fitting work for connecting a 1/2" JIC line to a M20 port?

Answer by: Customer Support on Oct 21, 2025, 6:22 AM

This 90-degree elbow is designed specifically to connect a 3/4 - 16 UNF JIC male connection to a M20 x 1.5 metric male connection.

Question by: Peggy M on Jan 12, 2026, 6:53 PM

got a piece of equipment here with an M20 x 1.5 port and I need to tie into a JIC line, this the right fitting for that?

Answer by: Customer Support on Jan 14, 2026, 6:36 PM

That's what this elbow is built for. One end is a 3/4-16 UNF JIC male connection and the other is an M20 x 1.5 metric male, so it bridges those two thread standards in a single 90-degree fitting. Both sides are male, so make sure your mating ports are female on each end before ordering.
