90* Female Bspp Swivel Elbow

Description & Features

Configured as a 90° elbow with female BSPP swivel connections on both ends, this steel fitting is designed for directional changes in hydraulic lines where rotational alignment is required during assembly or installation. The swivel feature on both ports allows the fitting to be positioned without twisting the connected hose or line.

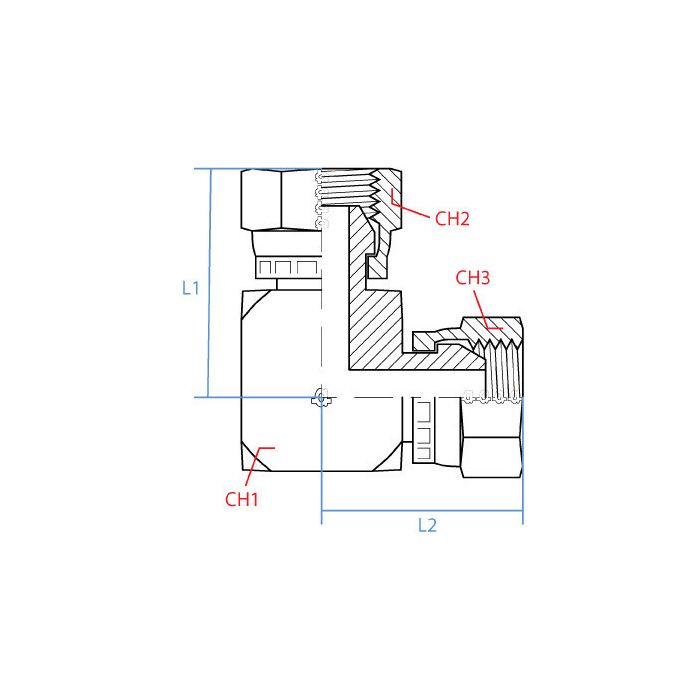

The 90* Female BSPP Swivel Elbow carries G 1/8-28 thread callouts on both sides, with each port sized at 1/8". Steel construction makes it well suited for industrial hydraulic circuits where durability and thread integrity under pressure are necessary. With a CH1 and CH2 wrench width of 15mm, L1 of 22mm, and L2 of 26mm, the fitting has a compact envelope suited to tight-space installations. This is an Adaptall product.

SKU: 9075-02-02

Supplier Part Number (MPN): 9075-02-02

Specifications

CH1 Width 15mm	CH2 Width 15mm	L1 Length 22mm	L2 Length 26mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/8 - 28	Side 1 Gender F	Side 1 Size 1/8"	Side 1 Type Bspp	Side 2 Callout G 1/8 - 28	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9075-02-02	Product Weight 0.09 lbs

Product Questions & Answers (1)

Question by: Warren S on Jun 24, 2025, 12:09 PM

What size is that fitting? I'm seeing G 1/8-28, but wanna be sure.

Answer by: Customer Support on Jun 25, 2025, 8:04 PM

You're right on the money. Both ends of this elbow are G 1/8-28, so it's 1/8" on both sides.
