90* Mbspp X Male Orb Adj.

Description & Features

This steel 90° elbow Adaptall fitting features a 1/2" male BSPP end and a 1/2" male ORB-SAE adjustable end. The G 1/2 - 14 side 1 callout and 3/4 - 16 UNF side 2 callout ensure compatibility across varied applications. With a shape designed for a 90° angle, this 90* Mbspp X Male Orb Adj. adapter offers versatility in connecting different hydraulic components.

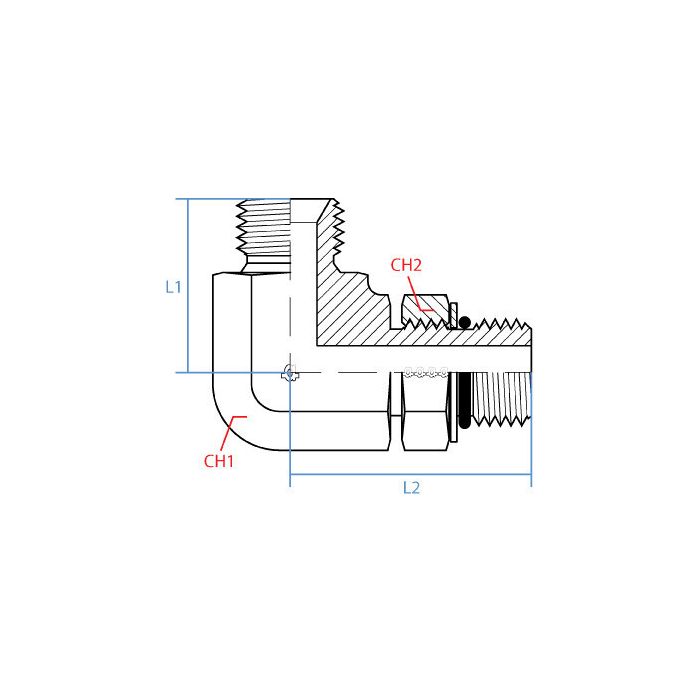

It measures 35mm in L1 length and 37mm in L2 length, with a 22mm width on both Ch1 and Ch2. This Adaptall fitting provides secure and reliable connections.

SKU: 9077-08-08

Supplier Part Number (MPN): 9077-08-08

Specifications

Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Male BSP, Male SAE ORB	Connection Type 1 Male BSPP 60 deg Flare	Connection Type 2 Male SAE ORB	Dimension Standards BS 5200, ISO 1179, ISO 11926, ISO 8434-6, SAE J1926	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 22 mm	Material Steel	Material Construction Carbon Steel	Series 9077 Series	Thread Size 3/4-16 x 1/2-14

Product Questions & Answers (2)

Question by: Ray E on Jul 13, 2025, 7:46 AM

I need a ninety degree elbow for a hydraulic setup. Will this thing do the trick?

Answer by: Customer Support on Jul 15, 2025, 7:54 AM

This 90° elbow Adaptall fitting should work great. It's made of steel and has a 1/2" male BSPP end and a 1/2" male ORB-SAE adjustable end.

Question by: Danny R on Sep 29, 2025, 10:18 AM

trying to match up an elbow i pulled off, is this the one with G 1/2 - 14 on one side and 3/4 - 16 UNF on the other?

Answer by: Customer Support on Oct 1, 2025, 6:51 AM

For fit confirmation, the thread callouts on this adapter are G 1/2 - 14 on Side 1 (male BSPP, 1/2 inch) and 3/4 - 16 UNF on Side 2 (male ORB-SAE, 1/2 inch). It is a 90 degree elbow and the ORB end is adjustable.
