Male Bspp Tee

Description & Features

Constructed from steel, this 3/4" Male Bspp Tee from Adaptall provides three-way flow distribution across all ports using G 3/4-14 male Bspp threads on each connection. With all three sides sharing the same thread type, size, and gender, the fitting is well-suited for symmetric branching arrangements in hydraulic circuit assemblies.

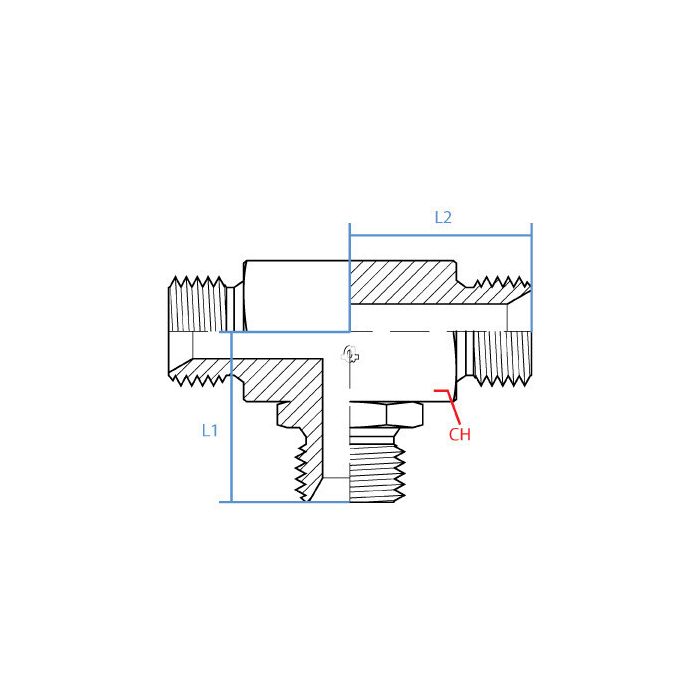

The tee measures 41mm along both run lengths with a channel width of 37.5mm, making it a compact and consistent choice where uniform port configuration is required across all three connections.

SKU: 9080-12-12-12

Supplier Part Number (MPN): 9080-12-12-12

Specifications

CH Width 37.5mm	L1 Length 41mm	L2 Length 41mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Side 3 Callout G 3/4 - 14	Side 3 Gender M	Side 3 Size 3/4"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9080-12-12-12	Product Weight 0.70 lbs

Product Questions & Answers (1)

Question by: Bobby H on Oct 17, 2025, 8:11 AM

What kind of steel is this tee fitting made from?

Answer by: Customer Support on Oct 19, 2025, 6:13 AM

It's constructed from steel, according to the listing.
