Female Bspp Swivel Tee

Description & Features

This steel tee fitting features female BSPP swivel connections on all three ports, each with a G 1/4 - 19 callout and 1/4" size.

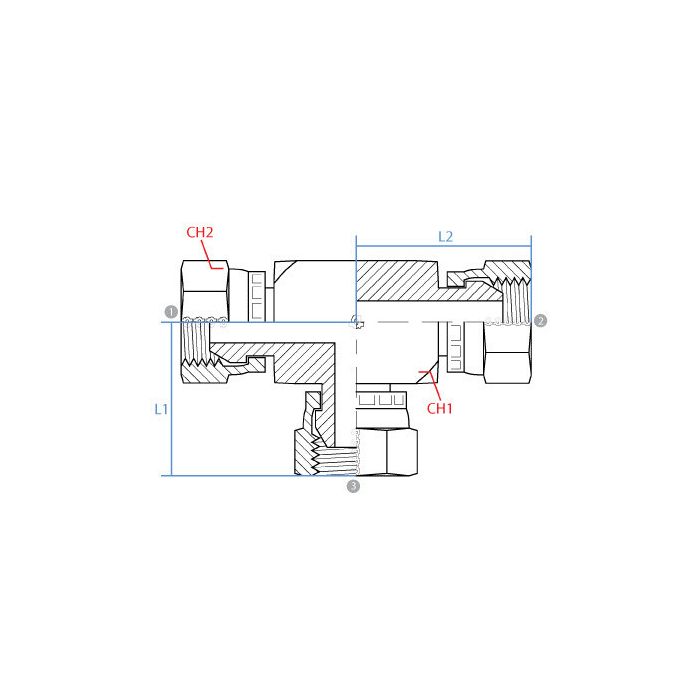

The Adaptall Female Bspp Swivel Tee provides a reliable connection point in hydraulic systems. This tee has a 19mm width for both Ch1 and Ch2, with an L1 length of 25mm and L2 length of 27mm.

SKU: 9085-04-04-04

Supplier Part Number (MPN): 9085-04-04-04

Specifications

CH1 Width 19mm	CH2 Width 19mm	L1 Length 25mm	L2 Length 27mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout G 1/4 - 19	Side 1 Gender F	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Side 3 Callout G 1/4 - 19	Side 3 Gender F	Side 3 Size 1/4"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9085-04-04-04	Product Weight 0.20 lbs

Product Questions & Answers (1)

Question by: Jimmy T on Mar 2, 2026, 10:58 AM

got three 1/4" BSPP hoses and need to split one line into two, is this the right tee for that?

Answer by: Customer Support on Mar 3, 2026, 7:19 PM

For tying three lines together in a tee, it matches up with three female BSPP swivel ports, all G 1/4 - 19 with a 1/4 inch size.
