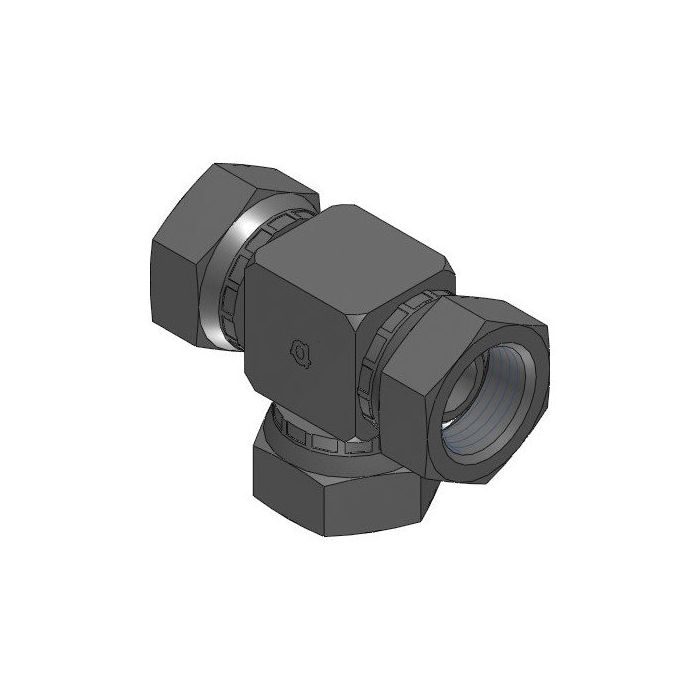

Female Bspp Swivel Tee

Description & Features

This steel female BSPP swivel tee features three female BSPP ports, each with a 1" size and G 1 - 11 callout.

This Adaptall tee fitting has a Ch1 width of 35mm and a Ch2 width of 41mm. The L1 length is 44mm and the L2 length is 48mm.

SKU: 9085-16-16-16

Supplier Part Number (MPN): 9085-16-16-16

Brand adapt-all	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Female BSP Swivel	Connection Type 1 Female BSPP 60 deg Flare Swivel	Connection Type 2 Female BSPP 60 deg Flare Swivel	Connection Type 3 Female BSPP 60 deg Flare Swivel	Dimension Standards BS 5200, ISO 1179, ISO 8434-6	Dimensions 105 mm L	Finish Zinc-Plated	Fitting Type Tee	Hex Size 36 x 41 mm	Material Steel	Material Construction Carbon Steel	Series 9085 Series	Thread Size 1-11

Question by: Bobby R on Jul 23, 2025, 4:11 PM

trying to replace a tee on my setup, are all three ports on this one the same thread and size?

Answer by: Customer Support on Jul 25, 2025, 6:35 AM

All three connections are female BSPP ports, each sized 1 inch with a G 1 - 11 callout, so it is a matching three way tee.

Question by: Freddie R on Feb 5, 2026, 10:50 AM

Just wanna make sure, this tee fitting's got three of them BSPP female ports, right? All the same size?

Answer by: Customer Support on Feb 6, 2026, 3:00 PM

That's correct. This tee fitting comes with three female BSPP ports, all sized at 1" with a G 1 - 11 callout.
