Female Bspp Swivel Tee

Description & Features

Constructed from steel, this tee-configuration swivel fitting provides three-port connectivity using 1-1/4" female BSPP (G 1-1/4 - 11) threads on all three sides. The swivel design allows rotational adjustment during installation, reducing the need for assembly torque and helping achieve correct orientation without stressing connected lines.

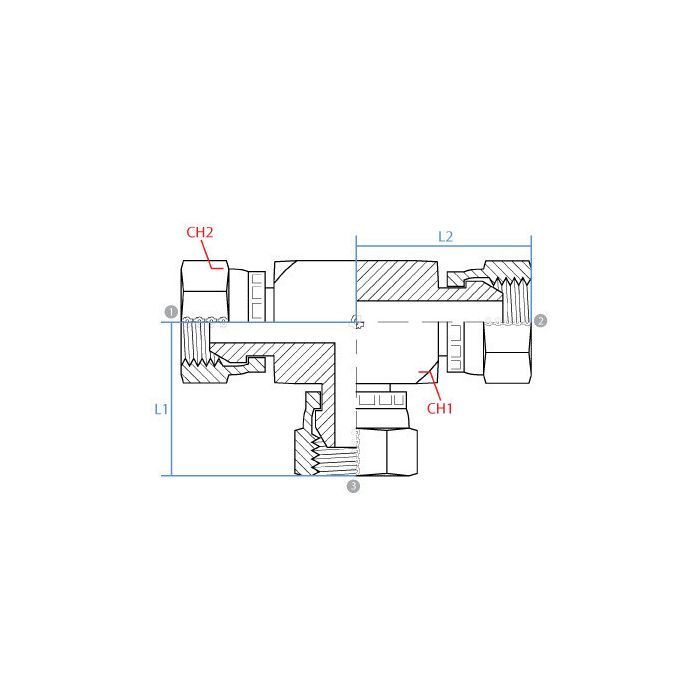

The Female Bspp Swivel Tee is manufactured by Adaptall, with a Ch1 and Ch2 wrench width of 50mm, an L1 length of 55mm, and an L2 length of 60mm. Consistent thread type and size across all three ports makes this fitting well suited for branching hydraulic circuits where uniform BSPP connections are required throughout.

SKU: 9085-20-20-20

Supplier Part Number (MPN): 9085-20-20-20

Specifications

CH1 Width 50mm	CH2 Width 50mm	L1 Length 55mm	L2 Length 60mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout G 1-1/4 - 11	Side 1 Gender F	Side 1 Size 1-1/4"	Side 1 Type Bspp	Side 2 Callout G 1-1/4 - 11	Side 2 Gender F	Side 2 Size 1-1/4"	Side 2 Type Bspp	Side 3 Callout G 1-1/4 - 11	Side 3 Gender F	Side 3 Size 1-1/4"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9085-20-20-20	Product Weight 2.45 lbs

Product Questions & Answers (2)

Question by: Harold B on Apr 17, 2025, 7:56 AM

All three ports on this thing are the same size and thread type, right? Just wanna make sure before I order it for a branching setup we got running off a 1-1/4 inch line.

Answer by: Customer Support on Apr 18, 2025, 1:14 PM

All three ports are 1-1/4 inch female BSPP, so every connection point on this fitting is identical. That uniform thread spec across all three sides is actually what makes it a solid pick for branching a single line into two without needing reducers or adapters to match up the ports.

Question by: Tammy J on Mar 12, 2026, 6:12 PM

got three 1-1/4 BSPP hoses i need to tee off, are all the ports on this the same thread and size?

Answer by: Customer Support on Mar 13, 2026, 9:28 PM

All three ports are 1-1/4 inch female BSPP threads with the same callout, G 1-1/4 - 11, so it is set up for uniform BSPP connections on every side of the tee.
