Bsp Female Tee (Fixed)

Description & Features

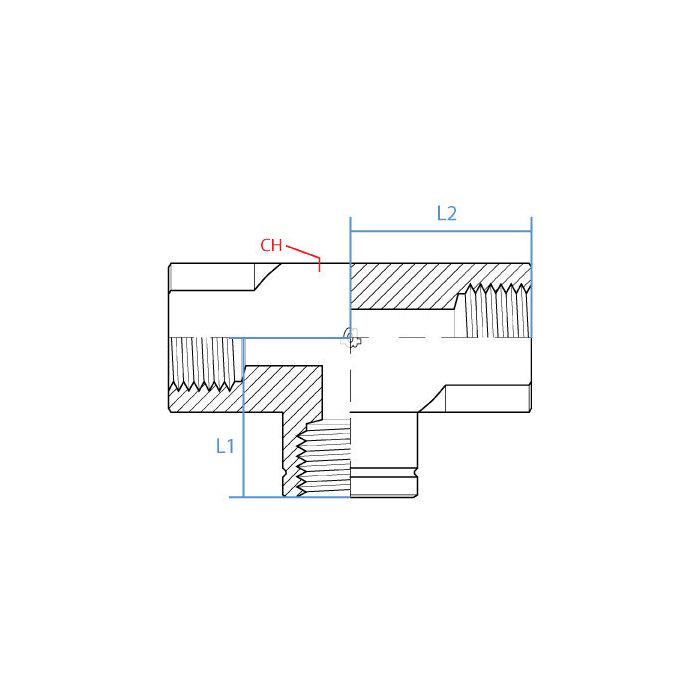

Constructed from steel, this fixed tee fitting provides three G 1/2-14 BSPP female ports in a symmetrical tee configuration, with each port sized at 1/2". The fixed design means the fitting body does not rotate, making it suitable for installations where alignment is set at assembly. With a channel width of 28mm and equal L1 and L2 lengths of 33.3mm, the geometry is consistent across all three connection points.

The Adaptall BSP Female Tee (Fixed) is well suited to hydraulic line assemblies requiring a branch connection where all three ports share the same thread form and size. BSPP threads use a parallel thread form and rely on a bonded seal or face seal to achieve a pressure-tight connection, a common requirement in hydraulic circuits using BSP-standard components.

SKU: 9086-08-08-08

Supplier Part Number (MPN): 9086-08-08-08

Specifications

CH Width 28mm	L1 Length 33.3mm	L2 Length 33.3mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout G 1/2 - 14	Side 1 Gender F	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Side 3 Callout G 1/2 - 14	Side 3 Gender F	Side 3 Size 1/2"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9086-08-08-08	Product Weight 0.51 lbs

Product Questions & Answers (1)

Question by: Dwight S on May 27, 2025, 4:47 PM

Trying to branch a 1/2 inch BSPP line, is this tee the one with three female ports?

Answer by: Customer Support on May 29, 2025, 6:01 AM

For a three-way branch with matching threads, it gives you three G 1/2-14 BSPP female ports in a straight tee layout, all the same 1/2 inch size.
