Female Bspp Branch Tee

Ask A Question

Description & Features

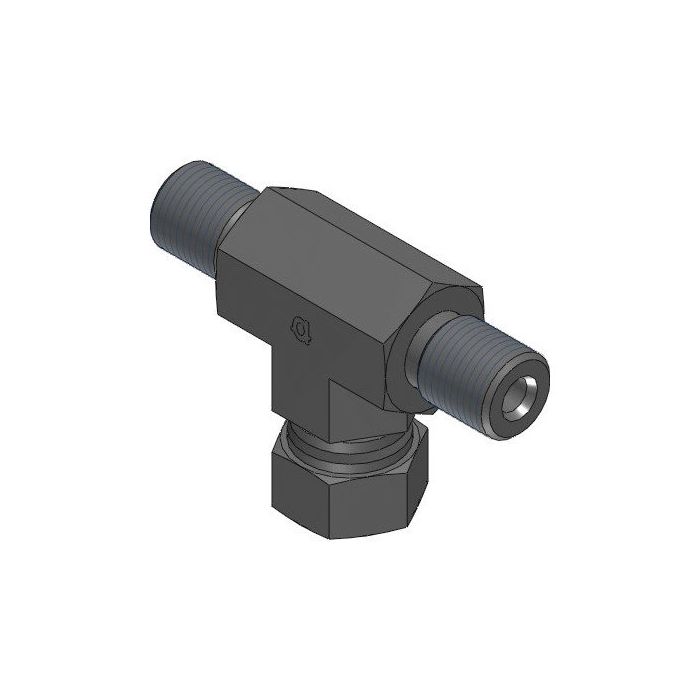

Constructed from steel, this 1-1/4" tee fitting routes flow in three directions within a hydraulic circuit, with two male BSPP ports (G 1-1/4 - 11) running inline and a female BSPP branch port (G 1-1/4 - 11) on the third connection. The Female Bspp Branch Tee is an Adaptall product, designed for compatibility within the Adaptall fitting system.

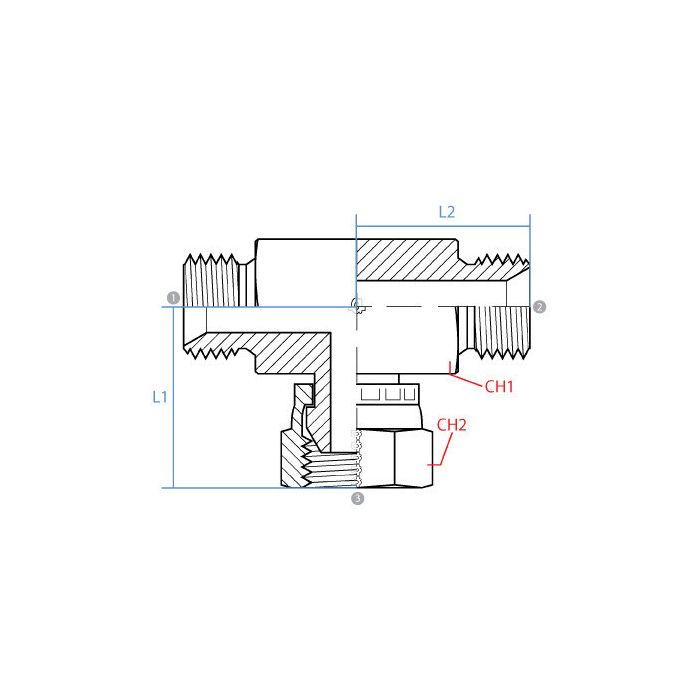

Overall dimensions measure 51mm and 50mm across the two wrench flats, with a body length of 49mm and a port-to-port length of 56.5mm along the branch axis. The consistent 1-1/4" thread size across all three ports simplifies integration into existing hydraulic line configurations where a branch takeoff is required.

SKU: 9087-20-20-20

Supplier Part Number (MPN): 9087-20-20-20

Specifications

Brand
adapt-all
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Female BSP Swivel
Connection Type 1
Female BSPP 60 deg Flare Swivel
Connection Type 2
Female BSPP 60 deg Flare Swivel
Connection Type 3
Female BSPP 60 deg Flare Swivel
Dimension Standards
BS 5200
Finish
Zinc-Plated
Fitting Type
Tee
Material
Steel
Material Construction
Carbon Steel
Series
9087 Series
Thread Size
1-1/4-11

Product Questions & Answers (3)

Question by: Ross G on Oct 8, 2025, 3:31 PM
trying to branch off a 1-1/4 bsp line, is this tee the one with two male ends and a female side port?
Answer by: Customer Support on Oct 9, 2025, 9:04 PM
Built as a three-way branch tee, it has two inline male BSPP ports and one female BSPP port on the branch. All three connections are G 1-1/4 - 11, so the thread size stays consistent across the run and the takeoff.
Question by: Carl C on May 3, 2025, 7:50 AM
All three ports on this thing are 1-1/4", does that include the branch side too, or just the inline ports?
Answer by: Customer Support on May 5, 2025, 7:49 AM
All three connections run the same G 1-1/4 - 11 BSPP thread size. The two inline ports are male and the branch port is female, but the thread spec stays consistent across the whole fitting. Makes it a lot easier to drop into an existing line without hunting down reducers or adapters.
Question by: Debbie K on Jan 29, 2026, 10:54 AM
What's the width of this tee fitting across the flats, if I need to get a wrench on it?
Answer by: Customer Support on Jan 31, 2026, 6:14 AM
You'll find two wrench flats on this tee. One measures 51mm across, and the other is 50mm.
