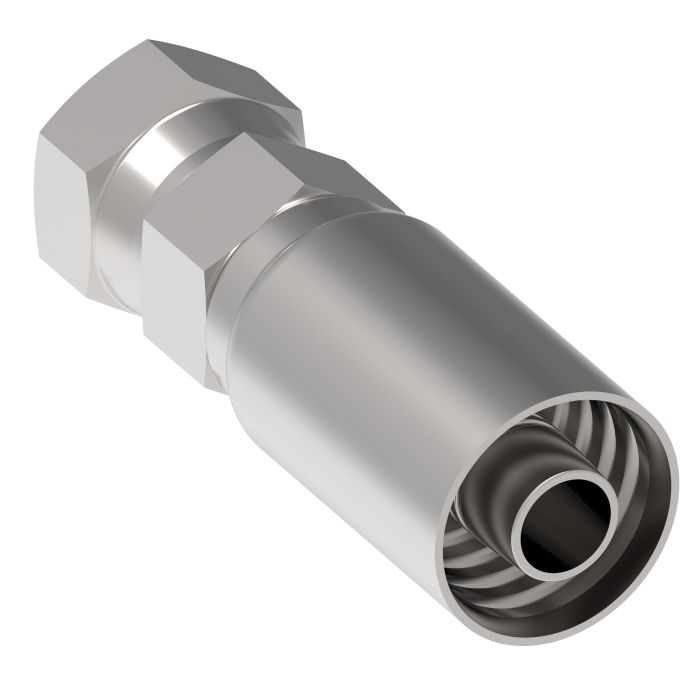

-4 FEMALE JIC

Description & Features

Designed for reliability, the Synflex by Danfoss / Eaton 90V Series Swage Hose Fittings offer robust performance in demanding industrial environments. This -4 FEMALE JIC fitting features a female JIC 37-degree swivel end, providing a secure connection for various hydraulic applications. Made from durable carbon steel, it ensures long-lasting use and resistance to wear.

The fitting's Dura-Kote plating offers superior corrosion resistance, making it ideal for harsh conditions. With an optimized inventory that allows for easy mixing and matching of components, this fitting adapts to a wide range of configurations, meeting diverse operational needs. Its compact design with a 0.4375 end size and 0.63 hex size supports efficient and versatile installations.

SKU: 90V04-045400-0

Supplier Part Number (MPN): 90V04-045400-0

Specifications

a Dimensions 2.53 in	Compatible Hose ID 1/4 in	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Crimp	Cut-Off Factor 1.454 in	Dimensions 2.15 in L x 0.08 in W x 0.08 in H	End Gender 1 Female	End Size 1 7/16 in	Finish Zinc-Plated	Fitting Type Hose Fitting	For Use With 3EV0 and 3V10 Series Hoses	Hex Size 0.63 in	Hose Dash Size 04	Inside Diameter 0.14 in	Material Steel	Material Construction Carbon Steel	nmfc 70	Segment Code C	Series 90V Series	Thread Sealant Without Thread Sealant	Thread Size 7/16-20	Thread Type UNF

Product Questions & Answers (1)

Question by: Travis S on Jul 23, 2025, 1:13 PM

Reckon this'll hold up okay outside? We get some nasty winters here.

Answer by: Customer Support on Jul 24, 2025, 9:26 PM

Dura-Kote plating on this fitting gives it good corrosion resistance, which should help it last even when the weather turns rough.
