Male Orb X Female Bspp

Description & Features

This straight Adaptall fitting connects male Orb-SAE to female BSPP ports. It features a steel construction for durability in demanding hydraulic environments.

The Adaptall fitting has a 9/16 - 18 UNF male Orb-SAE side with a 3/8" size and a G 1/4 - 19 female BSPP side with a 1/4" size.

SKU: 9120-06-04

Supplier Part Number (MPN): 9120-06-04

Specifications

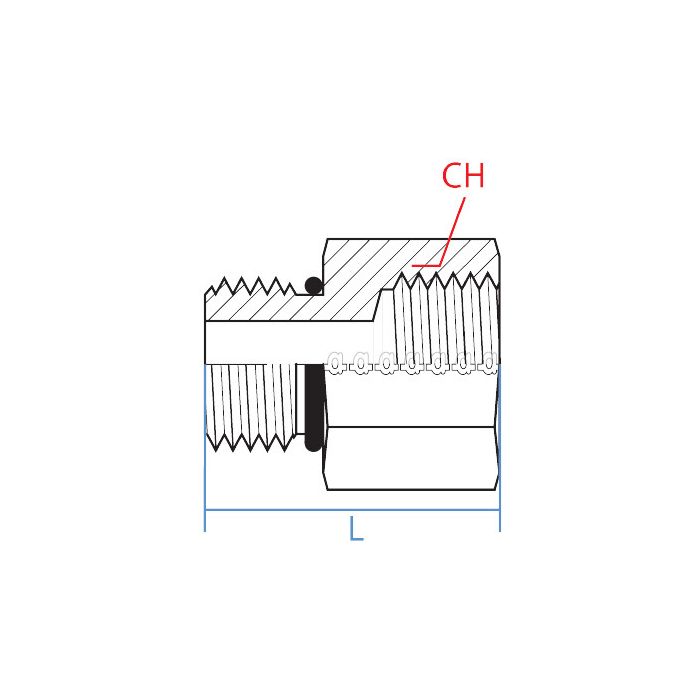

Connection Size 1 3/8 in	Connection Size 2 1/4 in	Connection Type Female BSP, Male ORB	Connection Type 1 Male ORB	Connection Type 2 Female BSP	Dimension Standards BS 5200, ISO 1179, ISO 11926, ISO 8434-6, SAE J1926	Dimensions 31 mm L	Fitting Type Adapter	Hex Size 19 mm	Material Steel	Material Construction Carbon Steel	Series 9120 Series	Thread Size 9/16-18 x 1/4-19

Product Questions & Answers (1)

Question by: Chad W on Nov 22, 2025, 2:04 PM

What thread types does this fitting connect on each end?

Answer by: Customer Support on Nov 23, 2025, 5:00 PM

One side runs a 9/16-18 UNF male ORB-SAE thread at 3/8" size, and the other side is a G 1/4-19 female BSPP thread at 1/4" size. Straight configuration, steel construction. Good solid fitting for bridging those two thread standards in a hydraulic line.
