90*Bspp Adjustable Elbow- Fnpt

Description & Features

Crafted for precision and durability, the Adaptall 90° BSPP Adjustable Elbow - FNPT is an essential component for industrial hydraulic systems. This elbow fitting is constructed from high-quality steel, ensuring robust performance in demanding environments. Designed with a versatile 90-degree shape, it facilitates seamless fluid flow between different components.

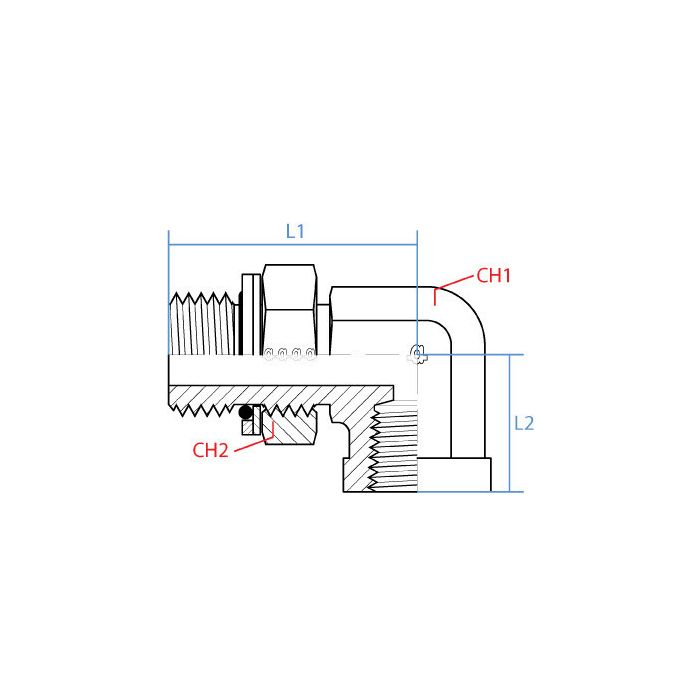

The elbow features a G 1/2 - 14 BSPP male connection on one side and a 1/2 - 14 NPTF female connection on the other, offering compatibility with a wide range of systems. With both Adaptall CH1 and CH2 widths measuring 27mm, it provides a balanced and secure fit. The L1 length of 45mm and L2 length of 31.3mm ensure compact installation without compromising on performance.

SKU: 9135-08-08

Supplier Part Number (MPN): 9135-08-08

Specifications

CH1 Width 27mm	CH2 Width 27mm	L1 Length 45mm	L2 Length 31.3mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9135-08-08	Product Weight 0.42 lbs

Product Questions & Answers (3)

Question by: Jimmy P on Nov 15, 2025, 9:30 AM

Got a hydraulic line running G 1/2 BSPP on one end and standard NPT fittings on the other, this thing gonna bridge that gap alright?

Answer by: Customer Support on Nov 16, 2025, 1:19 PM

That's what this fitting handles. One side is G 1/2-14 BSPP male and the other is 1/2-14 NPTF female, so it connects those two thread standards directly without needing an adapter in between. Both sides are 1/2 inch, so the sizing lines up clean.

Question by: Phil G on Aug 21, 2025, 3:21 PM

Will this elbow fitting work with standard NPT threads on my equipment?

Answer by: Customer Support on Aug 23, 2025, 6:16 AM

This elbow has a 1/2" NPTF female connection on one side, so it should connect to standard 1/2" NPT male threads. Just make sure the other side, the BSPP connection, matches your other component.

Question by: Stan B on Apr 20, 2025, 10:11 AM

got a hose end that’s G 1/2-14 BSPP male and i need to turn into 1/2-14 NPTF female, is this the right elbow?

Answer by: Customer Support on Apr 21, 2025, 7:02 PM

For that exact thread pairing, it matches. Side 1 is a G 1/2 - 14 BSPP male, and side 2 is a 1/2 - 14 NPTF female, in a 90 degree adjustable elbow body.
