90*Bspp Adjustable Elbow- Fnpt

Description & Features

This steel 90° elbow features a BSPP male end and an NPT female end. It adapts connections with dissimilar threads to create a secure, leak-free seal in hydraulic applications. The 90*BSPP Adjustable Elbow- Fnpt offers versatility for connecting various components in fluid transfer systems.

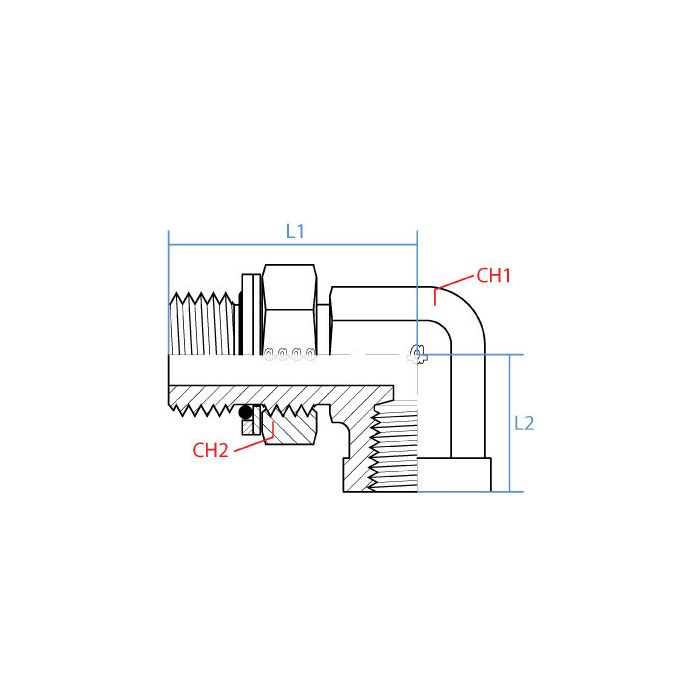

This Adaptall fitting features a G 3/4 - 14 BSPP male connection on Side 1 and a 3/4 - 14 NPTF female connection on Side 2. The width across flats measures 33mm on Side 1 and 36mm on Side 2. It has an L1 length of 51mm and an L2 length of 34.5mm.

SKU: 9135-12-12

Supplier Part Number (MPN): 9135-12-12

Specifications

CH1 Width 33mm	CH2 Width 36mm	L1 Length 51mm	L2 Length 34.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout 3/4 - 14 NPTF	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9135-12-12	Product Weight 0.79 lbs

Product Questions & Answers (3)

Question by: Lance L on Sep 29, 2025, 4:54 PM

Hey, will this here elbow fitting hold up okay outside?

Answer by: Customer Support on Oct 1, 2025, 1:49 PM

This steel elbow fitting is suitable for hydraulic applications. Its durability in specific outdoor conditions would depend on factors like exposure to corrosive elements and operating pressures, but the steel construction should offer decent resistance.

Question by: Patty F on Apr 17, 2025, 3:23 PM

Got a piece of equipment with a BSPP port and I need to tie into a line that's NPTF threaded, will this fitting bridge that gap?

Answer by: Customer Support on Apr 19, 2025, 9:58 AM

Yeah, that's exactly what this one's built for. One side is a G 3/4-14 BSPP male and the other is a 3/4-14 NPTF female, so it connects those two thread types at a 90-degree angle. Both sides are 3/4 inch, and the whole thing is steel construction. If your port sizes and thread types match up, you're good to go.

Question by: Floyd M on Oct 27, 2025, 10:10 AM

trying to hook a bspP line to an npt port, is this the elbow that does that?

Answer by: Customer Support on Oct 29, 2025, 6:11 AM

For adapting between those two thread styles, it’s a 90 degree steel elbow with a G 3/4 - 14 BSPP male on one end and a 3/4 - 14 NPTF female on the other, so it bridges BSPP to NPT in a single fitting.
