90*Bspp Adjustable Elbow- Fnpt

Description & Features

Designed for robust industrial applications, the 90° BSPP Adjustable Elbow-FNPT ensures reliable performance and seamless connectivity. This steel elbow fitting features a G 1-1/4 - 11 male BSPP (British Standard Pipe Parallel) thread on one side and a 1-1/4 - 11.5 female NPTF (National Pipe Taper Fuel) thread on the other, making it ideal for versatile hydraulic systems. Crafted with precision, this elbow fitting provides a secure connection and is adjustable for optimal alignment in complex setups.

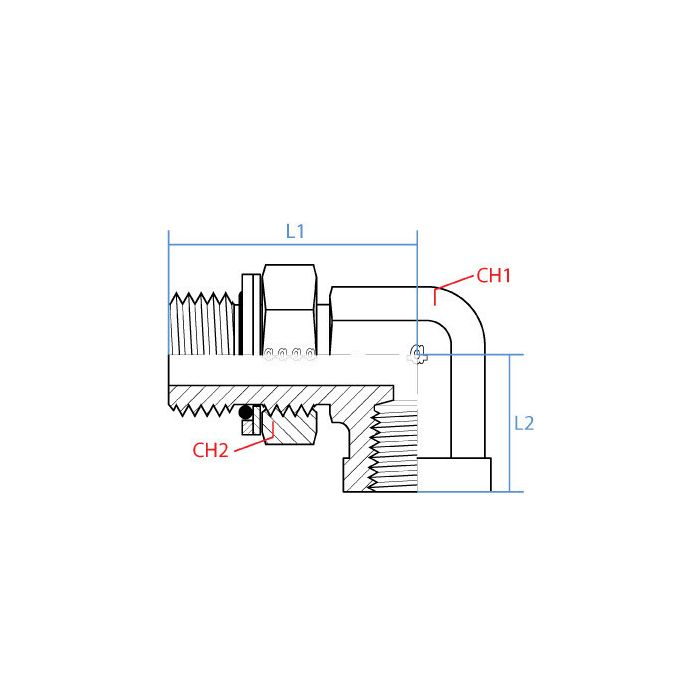

With Adaptall's engineering expertise, this fitting is built to withstand demanding environments. Its dimensions include a CH1 width of 47mm, CH2 width of 50mm, L1 length of 63mm, and L2 length of 43.1mm, ensuring compatibility and ease of installation in various hydraulic applications. Constructed from durable steel, it offers long-lasting durability and resistance to wear and tear, making it a dependable choice for any industrial setting.

SKU: 9135-20-20

Supplier Part Number (MPN): 9135-20-20

Specifications

Brand adapt-all	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type FNPT, Male BSP	Connection Type 1 Male BSPP	Connection Type 2 Female NPT	Dimension Standards ANSI B1.20.3, BS 5200, ISO 1179, ISO 8434-6	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	Series 9135 Series	Thread Size 1-1/4-11

Product Questions & Answers (1)

Question by: Hank M on Nov 11, 2025, 6:44 AM

got a hose end that’s G 1-1/4 - 11 male BSPP. will this elbow screw right onto it and give me a 1-1/4 female NPTF on the other side?

Answer by: Customer Support on Nov 13, 2025, 6:41 AM

For thread match, it’s a G 1-1/4 - 11 male BSPP on one side and a 1-1/4 - 11.5 female NPTF on the other, so it’s meant to adapt from BSPP to FNPTF at the 1-1/4 inch size.
