Male Bspp Adjustable Run Tee

Ask A Question

Description & Features

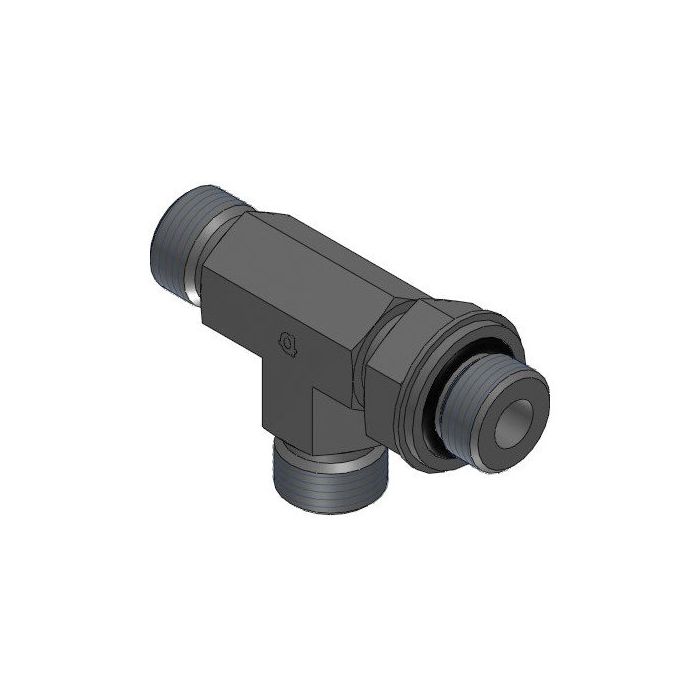

This steel Male Bspp Adjustable Run Tee features G 3/8 - 19 ports on all three sides. Each side features male gender and 3/8" size.

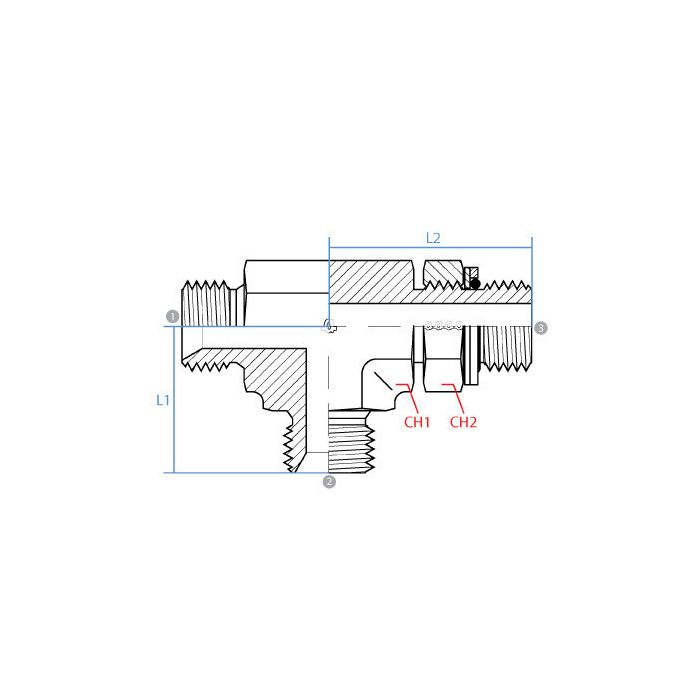

The Adaptall Ch1 Width is 19mm, while the Adaptall Ch2 Width is 22mm. Adaptall L1 Length is 23mm, and Adaptall L2 Length is 36mm.

SKU: 9151-06-06-06

Supplier Part Number (MPN): 9151-06-06-06

Alternate Part Numbers: C1GG77

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Size 3
3/8 in
Connection Type
Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Male BSPP 60 deg Flare
Connection Type 3
Male BSPP 60 deg Flare
Dimension Standards
BS 5200
Dimensions
68 mm L
Finish
Zinc-Plated
Fitting Type
Tee
Material
Steel
Material Construction
Carbon Steel
Series
9151 Series
Thread Size
3/8-19

Product Questions & Answers (2)

Question by: Hubert M on Nov 21, 2025, 3:10 PM
What’s the deal with those two different widths listed, the 19mm and 22mm? Is that for wrench sizes or something?
Answer by: Customer Support on Nov 23, 2025, 7:07 AM
Those measurements refer to the Adaptall Ch1 Width and Adaptall Ch2 Width, which are 19mm and 22mm respectively. They likely indicate the wrench sizes needed to tighten the fitting during installation.
Question by: Glen M on Dec 13, 2025, 1:53 PM
All three ports on this thing are 3/8 male BSPP? Just want to make sure before I order a handful of em.
Answer by: Customer Support on Dec 14, 2025, 9:26 PM
Correct on all counts. Every port on this tee carries the same G 3/8-19 male BSPP thread, so all three connections are identical in both size and gender. That makes it straightforward to plan your fittings since there's no mixing of sizes or thread types anywhere on the body.
