Male Bspp Adjustabl Branch Tee

Description & Features

Constructed from steel, this 3/8" three-way tee fitting provides a BSPP male connection on all three ports, making it well suited for branching hydraulic lines where a consistent thread type is required throughout. All three sides carry a G 3/8-19 callout, ensuring uniform compatibility across the assembly.

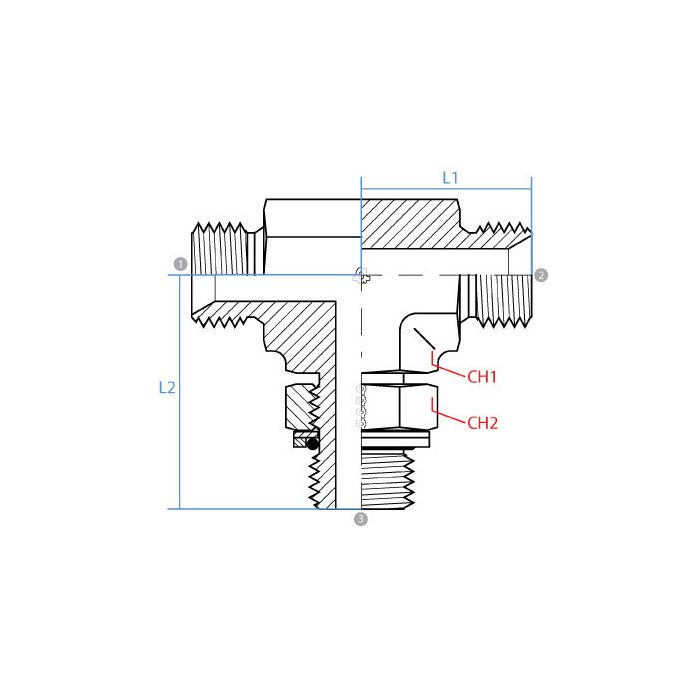

The Male Bspp Adjustable Branch Tee is an Adaptall product, with CH1 and CH2 wrench flats measuring 19mm and 24mm respectively. Overall length dimensions of 32mm (L1) and 38mm (L2) keep the fitting compact within tight installations. The adjustable branch design allows the branch port orientation to be positioned as needed before final torque, adding flexibility during assembly.

SKU: 9152-06-06-06

Supplier Part Number (MPN): 9152-06-06-06

Alternate Part Numbers: C1FM40

Specifications

CH1 Width 19mm	CH2 Width 24mm	L1 Length 32mm	L2 Length 38mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Side 3 Callout G 3/8 - 19	Side 3 Gender M	Side 3 Size 3/8"	Alternate Part Numbers Alternate Part Number C1FM40	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9152-06-06-06	Product Weight 0.30 lbs

Product Questions & Answers (1)

Question by: Dwight H on Nov 3, 2025, 9:42 PM

got three G 3/8-19 ports on my setup. is this tee all the same thread on every side?

Answer by: Customer Support on Nov 5, 2025, 10:38 AM

All three ports are BSPP male with the same callout, G 3/8-19, so you are matching the same thread type and size on each connection.
