Male Jic X Metric Branch Tee

Ask A Question

Description & Features

Constructed from steel, this Male Jic X Metric Branch Tee from Adaptall provides a three-way connection that combines dual JIC male ports with a metric male branch. Sides 1 and 2 are 1/4" JIC male connections with a 7/16–20 UNF thread form, while Side 3 is a 10mm metric male port threaded at M10 x 1.0, making this fitting well suited for hydraulic circuits where JIC and metric lines must be joined at a single tee junction.

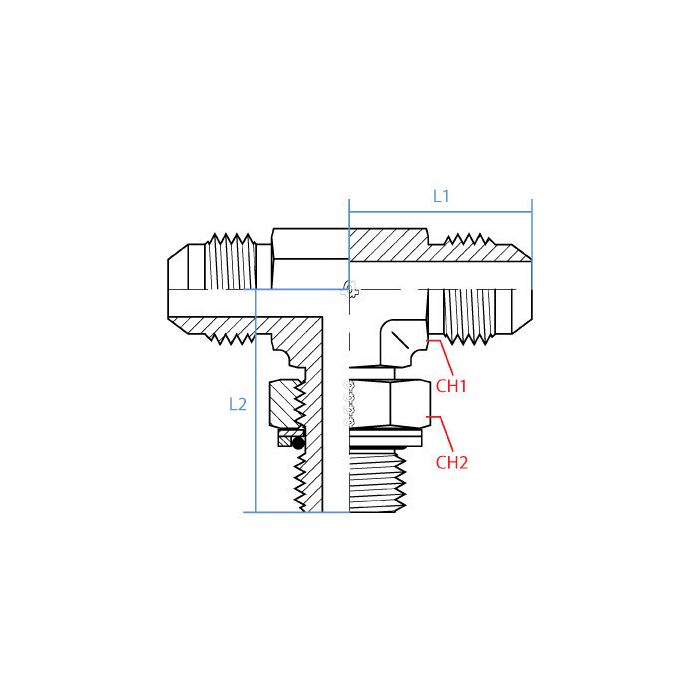

Overall dimensions include a L1 length of 23mm and L2 length of 27mm, with wrench flats of 12mm and 14mm on the respective sides. The tee configuration allows a branch takeoff from a main JIC line to a metric-threaded component without the need for additional adapters. Adaptall fittings are designed for interchangeability and broad compatibility across hydraulic systems.

SKU: 9169-04-04-10

Supplier Part Number (MPN): 9169-04-04-10

Specifications

Brand
adapt-all
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male JIC
Connection Type 3
Male Metric
Dimension Standards
DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
Dimensions
45 mm L
Finish
Zinc-Plated
Fitting Type
Tee
Material
Steel
Material Construction
Carbon Steel
Series
9169 Series
Thread Size
7/16-20, M10x1

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Size 3 Thread Size Hex Size Price Action
Male Jic X Metric Branch Tee

9169-04-04-12

1/4 in

1/4 in

7/16-20 x M12x1.5

Male Jic X Metric Branch Tee

9169-06-06-14

3/8 in

3/8 in

3/8 in

9/16-18 x M14x1.5

17 x 19 mm

Product Questions & Answers (3)

Question by: Hank L on Jan 5, 2026, 8:28 PM
Got a hydraulic line running 1/4" JIC on both ends but need to tap off to a 10mm metric component, this tee gonna work for that kind of setup?
Answer by: Customer Support on Jan 7, 2026, 8:16 AM
That's exactly what this fitting is built for. Both inline ports are 1/4" JIC male with 7/16-20 UNF threading, and the branch port comes off at M10 x 1.0 metric male. So you can run your main JIC line straight through sides 1 and 2, then pull a branch off side 3 to your metric-threaded component, all in one piece without stacking extra adapters.
Question by: Todd M on Feb 24, 2026, 6:04 PM
So this thing's got both JIC and metric? Just wanna make sure I'm readin' that right before I order.
Answer by: Customer Support on Feb 26, 2026, 6:47 AM
Yes, this tee fitting does indeed have both JIC and metric connections. Sides 1 and 2 are 1/4" JIC male, while Side 3 is a 10mm metric male port.
Question by: Terry H on May 29, 2025, 8:42 AM
trying to tee off a 1/4 JIC line to a metric port, is this the one with two 7/16-20 males and a M10x1.0 branch?
Answer by: Customer Support on May 30, 2025, 7:00 PM
You’ve got the right idea. Sides 1 and 2 are 1/4 inch JIC male with 7/16-20 UNF threads, and the branch side is a 10 mm metric male threaded M10 x 1.0.
