Male Jic X Metric Branch Tee

Description & Features

Constructed from steel, this tee fitting connects two 1/4" Male JIC ports (7/16-20 UNF) with a 12mm Male Metric branch port (M12 x 1.5), making it well suited for hydraulic circuits that require a branch connection between JIC and metric threaded lines. The Male JIC x Metric Branch Tee is an Adaptall component, designed to provide a reliable transition where these two thread standards meet in a single junction.

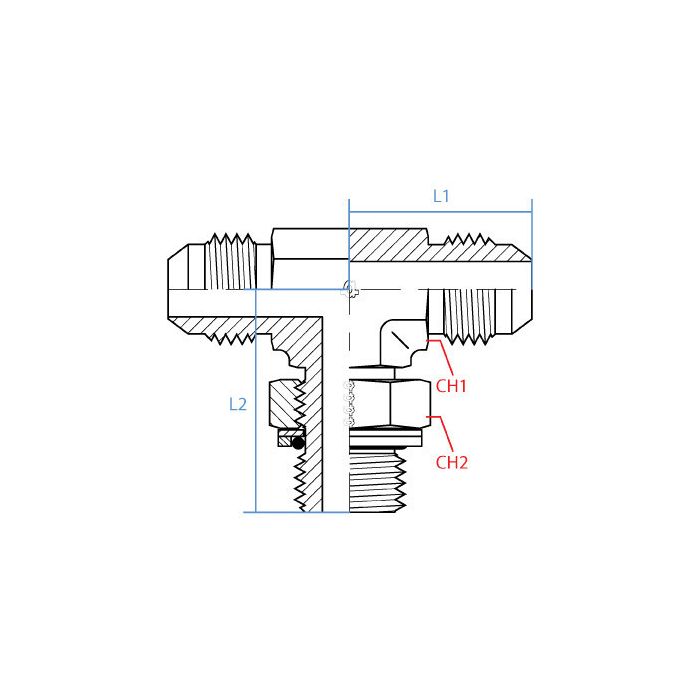

With a Ch1 width of 14mm and Ch2 width of 17mm, the fitting is compact in profile. The L1 length measures 25mm and L2 measures 29mm, keeping the overall assembly footprint manageable in tight installations. All three ports are male, with Sides 1 and 2 sharing identical JIC geometry and Side 3 providing the metric branch outlet.

SKU: 9169-04-04-12

Supplier Part Number (MPN): 9169-04-04-12

Specifications

CH1 Width 14mm	CH2 Width 17mm	L1 Length 25mm	L2 Length 29mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout 7/16 - 20 UNF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Jic	Side 3 Callout M12 X 1.5	Side 3 Gender M	Side 3 Size 12mm	Side 3 Type METRIC	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9169-04-04-12	Product Weight 0.15 lbs

Product Questions & Answers (1)

Question by: Wayne R on Mar 29, 2026, 6:59 AM

So this thing will let me hook up a metric line to a JIC line, right? Just wanna make sure I'm understanding it right.

Answer by: Customer Support on Mar 30, 2026, 2:00 PM

Yes, that's precisely the purpose. This tee fitting is designed to connect two 1/4" Male JIC ports (7/16-20 UNF) with a 12mm Male Metric branch port (M12 x 1.5), providing a reliable transition between the two thread standards.
