Male Jic X Metric Branch Tee

Description & Features

Designed for seamless integration in hydraulic systems, this Male Jic X Metric Branch Tee offers reliable performance and exceptional durability. Crafted from robust steel, it ensures high resistance to wear and tear, making it suitable for demanding industrial environments. The tee features two 9/16 - 18 UNF JIC male connections and one M14 x 1.5 metric male connection, providing versatile connectivity options for various applications.

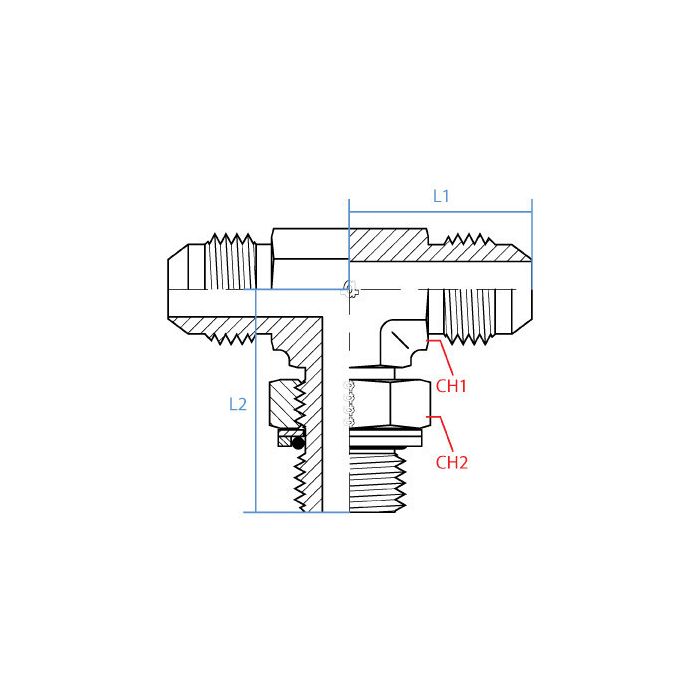

The dimensions include a 14mm width on channel 1 and a 19mm width on channel 2, with lengths of 27mm and 33mm respectively, allowing for precise fitting in complex setups. Its adaptable design makes it an ideal choice for industries requiring robust and flexible hydraulic solutions.

SKU: 9169-06-06-14

Supplier Part Number (MPN): 9169-06-06-14

Specifications

CH1 Width 14mm	CH2 Width 19mm	L1 Length 27mm	L2 Length 33mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout 9/16 - 18 UNF	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Jic	Side 3 Callout M14 X 1.5	Side 3 Gender M	Side 3 Size 14mm	Side 3 Type METRIC	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9169-06-06-14	Product Weight 0.15 lbs

Product Questions & Answers (3)

Question by: Rick S on Mar 31, 2026, 7:05 AM

trying to tee off a line with two 3/8 JIC males and a metric branch, is that what this is?

Answer by: Customer Support on Apr 1, 2026, 8:50 PM

Built as a branch tee, it has two JIC male ends that are 9/16-18 UNF (3/8 size) plus one metric male branch that is M14 x 1.5 (14 mm). That setup lets you split or add a branch line where you need JIC on the run and metric on the branch.

Question by: Judy G on Jun 6, 2025, 3:50 PM

Will this tee handle the pressures in my hydraulic system, or do I need something heavy-duty?

Answer by: Customer Support on Jun 8, 2025, 8:01 AM

This tee, constructed from robust steel, is well-suited for demanding industrial environments, offering high resistance to wear and tear within typical hydraulic pressure ranges.

Question by: Curt M on Sep 27, 2025, 4:08 PM

got a metric port on my manifold that's M14 x 1.5 and need to branch off to two JIC lines, this tee gonna work for that?

Answer by: Customer Support on Sep 29, 2025, 10:29 AM

That's what this fitting is built for. The branch port is M14 x 1.5 male metric, and the two run ports are both 9/16-18 UNF JIC male at 3/8" size. So you'd be connecting the metric side into whatever female metric port you have on the manifold, and running your two JIC lines off the other ends. Steel construction, so it'll hold up in a working hydraulic setup without any fuss.
