Mjic-Fem Metric Soft Seal

Description & Features

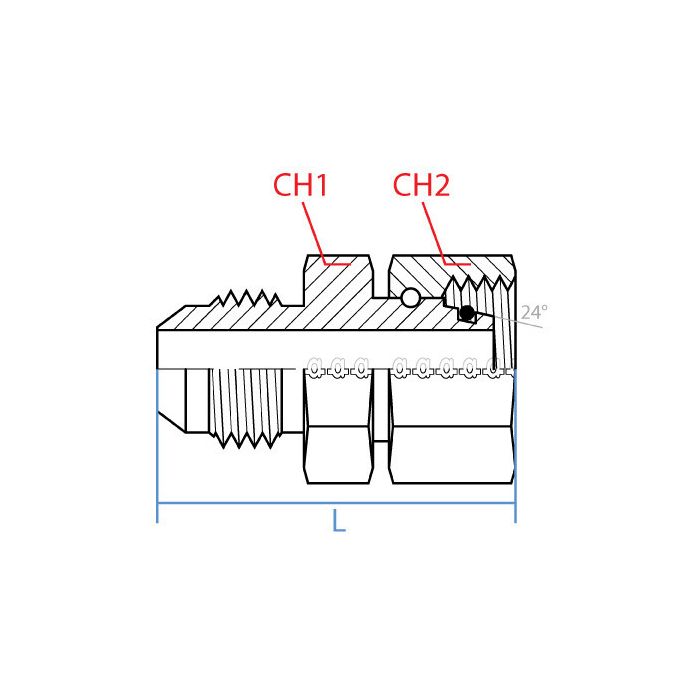

The Mjic-Fem Metric Soft Seal is crafted from durable steel ensuring reliable performance in specialized industrial applications. This straight adapter features a 17mm width on CH1 and 22mm width on CH2 providing a robust connection that withstands demanding conditions.

On one side the adapter has a 3/8" Jic male connection denoted by a 9/16 - 18 UNF thread. The other side is configured with an M18 X 1.5 metric size designed as a female Din Tube connection (S10). With a total length of 45.1mm the adapter is compact yet efficient.

Technical precision and quality construction by Adaptall America make this Mjic-Fem Metric Soft Seal a reliable choice for industrial use. It comes with no additional features like adjustment or ratcheting focusing purely on its core function.

Supplier Part Number: 9197-06-S10-18

Specifications

CH1 Width 17mm	CH2 Width 22mm	L Length 45.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size S10	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07464253, Alternate Part Number MINO-03671X00229	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-06-S10-18	Product Weight 0.06 lbs

Product Questions & Answers (2)

Question by: Ronnie G on Jun 7, 2025, 7:06 AM

got a 3/8 JIC male fitting on a hydraulic line and need to tie into a metric port that's M18 x 1.5 female DIN tube. this the right adapter for that?

Answer by: Customer Support on Jun 8, 2025, 4:17 PM

That's what this adapter does. One end is a 3/8" JIC male with a 9/16-18 UNF thread, and the other is a female DIN tube connection sized M18 x 1.5 (S10). Steel construction, straight configuration, 45.1mm total length. Solid fit for that crossover connection.

Question by: Curt T on Dec 19, 2025, 2:23 PM

So this here adapter has a 3/8" JIC male end and a metric female end, right? Just want to make sure I'm readin' it right.

Answer by: Customer Support on Dec 21, 2025, 8:21 AM

That's correct. The adapter features a 3/8" JIC male connection on one side and a M18 X 1.5 metric female Din Tube connection (S10) on the other.
