Mjic-Fem Metric Soft Seal

Description & Features

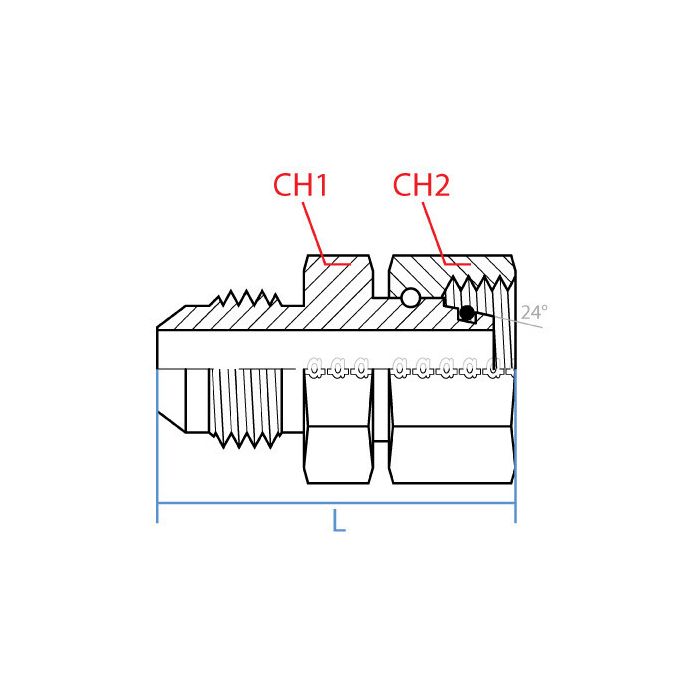

Crafted with precision, this Adaptall hydraulic fitting seamlessly connects components with its robust steel construction, ensuring reliability in demanding industrial environments. Featuring a straight shape, the fitting is designed with a JIC male connection on Side 1, measuring 3/4 - 16 UNF and sized at 1/2". On Side 2, it incorporates a DIN Tube female connection, sized at M24 X 1.5. This combination of connections offers versatility, making it suitable for a wide range of hydraulic applications.

The Mjic-Fem Metric Soft Seal is engineered to meet the rigorous standards of industrial use, providing a secure and leak-proof seal. Its durable steel material enhances its longevity and performance across various settings. The fitting’s adaptability makes it an essential component for professionals seeking reliable solutions in hydraulic systems.

SKU: 9197-08-S16-24

Supplier Part Number (MPN): 9197-08-S16-24

Specifications

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M24 X 1.5	Side 2 Gender F	Side 2 Size S16	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-08-S16-24	Product Weight 0.99 lbs

Product Questions & Answers (2)

Question by: Daryl P on Jan 2, 2026, 7:43 AM

Got a DIN tube line running M24 x 1.5 and need to tie into a JIC fitting on a pump port, this the right adapter for that?

Answer by: Customer Support on Jan 4, 2026, 7:41 AM

That setup is exactly what this fitting handles. One end is a 3/4-16 UNF JIC male at 1/2 inch, and the other is an M24 x 1.5 DIN tube female. Steel construction, straight body, soft seal on the metric side. If your tube and port match those specs, you're good to go.

Question by: Phil W on Dec 1, 2025, 6:47 PM

Will this fitting hold up if I'm using it for a hydraulic press?

Answer by: Customer Support on Dec 3, 2025, 11:11 AM

This steel fitting is crafted to handle demanding industrial environments, so it should be suitable for hydraulic press applications, providing a secure and leak-proof seal.
