Mjic-Fem Metric Soft Seal

Description & Features

The Mjic-Fem Metric Soft Seal from Adaptall America is crafted from high-grade steel designed for stringent environments requiring secure and durable connections. This straight adapter features a 1-1/16 - 12 UN male JIC connection on one end and an M26 x 1.5 female DIN Tube connection on the other ensuring versatile application compatibility.

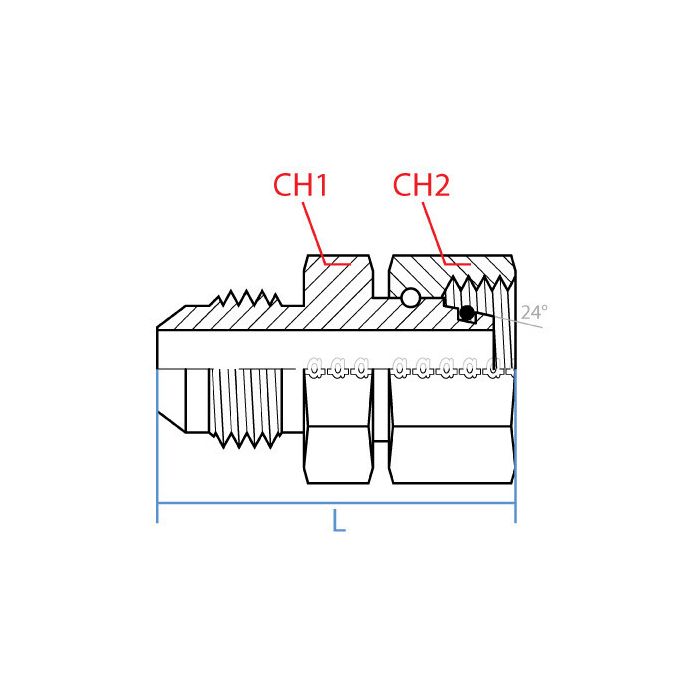

It has key dimensions including a CH1 width of 27mm CH2 width of 32mm and an overall length of 56.5mm suitable for various industrial applications. The adapter maintains a robust and secure seal without needing additional thread sealant.

Supplier Part Number: 9197-12-L18-26

Specifications

CH1 Width 27mm	CH2 Width 32mm	L Length 56.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M26 X 1.5	Side 2 Gender F	Side 2 Size L18	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07137939, Alternate Part Number MINO-03671X47479	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-12-L18-26	Product Weight 0.43 lbs

Product Questions & Answers (1)

Question by: Clint E on Dec 8, 2025, 11:52 AM

does this thing need any thread tape or sealant to get a good seal, or is it good to go as-is?

Answer by: Customer Support on Dec 9, 2025, 2:40 PM

No additional sealant or thread tape is needed. The soft seal design on the female DIN Tube end handles the sealing on its own, so you can make up the connection without any extra prep on that side. The male JIC end seals on the 37-degree flare seat the way standard JIC fittings do, which also doesn't require sealant. Just make sure both mating surfaces are clean and in good shape before assembly.
