Mjic-Fem Metric Soft Seal

Description & Features

The Mjic-Fem Metric Soft Seal facilitates seamless connections in industrial settings. Its steel construction ensures high durability and reliability. The straight adaptation between a 1-1/16 - 12 UN male and an M30 X 2.0 female DIN tube fitting is engineered for precision.

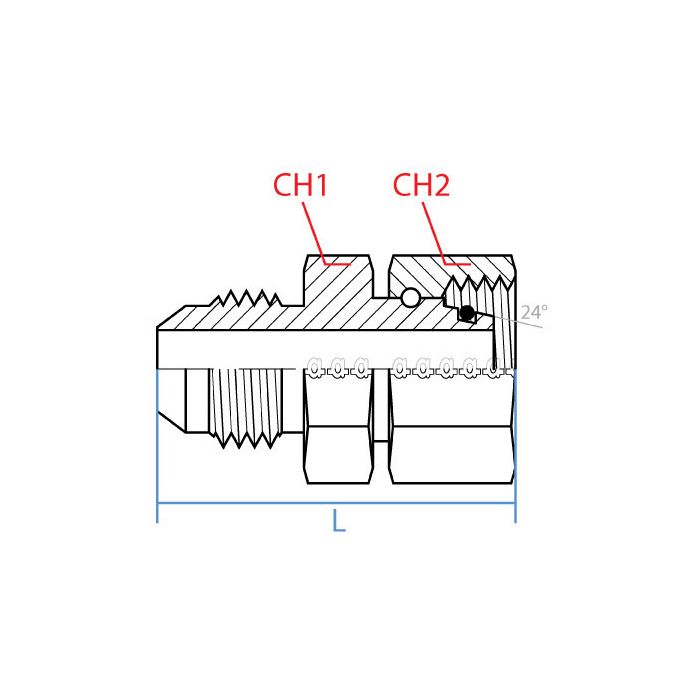

Designed to specifications with a CH1 width of 27mm and CH2 width of 36mm it guarantees a secure fit. This adapter is optimized for demanding environments requiring robust and accurate fittings. The overall length of 64.1mm provides a compact yet efficient solution for varied applications.

Perfectly suited for technical applications this product stands out for its meticulous design and high performance. Its straightforward installation is free from complications like ratcheting or the need for thread sealant making it an efficient component in specialized industrial systems.

Supplier Part Number: 9197-12-S20-30

Specifications

CH1 Width 27mm	CH2 Width 36mm	L Length 64.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M30 X 2.0	Side 2 Gender F	Side 2 Size S20	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-06189424, Alternate Part Number MINO-03671X90004	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-12-S20-30	Product Weight 0.58 lbs

Product Questions & Answers (1)

Question by: Chad J on May 14, 2025, 4:19 PM

adapter goes from JIC male to metric female, that right? trying to bridge two different systems on a hydraulic line and want to make sure i got the right part before i order

Answer by: Customer Support on May 16, 2025, 10:14 AM

Correct on both counts. One end is a 3/4" JIC male fitting with a 1-1/16-12 UN thread, and the other end accepts an M30 x 2.0 female DIN tube fitting. So yeah, it bridges a standard JIC line over to a metric DIN connection in one straight adapter. No thread sealant needed and no ratcheting issues to deal with during install either.
