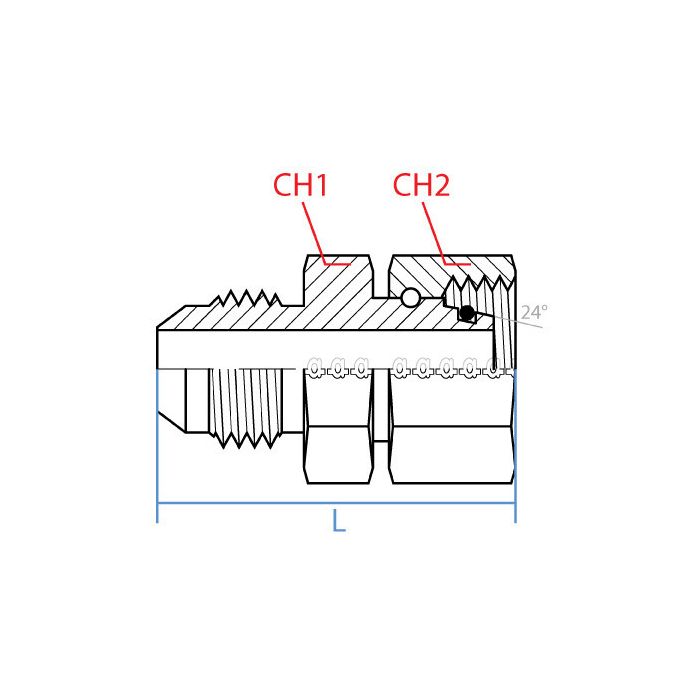

main product photo

Mjic-Fem Metric Soft Seal

Ask A Question

Description & Features

The Mjic-Fem Metric Soft Seal produced by Adaptall America is meticulously designed to facilitate secure and effective connections in industrial applications. This component crafted from high-quality steel features a straight design ensuring robustness and reliability. The connection on Side 1 is a JIC male fitting with a 1-5/16 - 12 UN thread whereas Side 2 is a DIN tube female fitting with M30 X 2.0 thread providing compatibility and versatility.

Engineered with precision the Mjic-Fem Metric Soft Seal is equipped with a 36mm width on both sides and a total length of 56.5mm ensuring a compact yet efficient form factor. This component is not color-coded does not include any ratcheting mechanism and functions without the need for a thread sealant simplifying installation and maintenance processes.

**Supplier Part Number:** 9197-16-L22-30

Specifications

Connection Size 1
1 in
Connection Size 2
22 mm
Connection Type
Female Metric Swivel, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female DIN Tube Swivel
Dimension Standards
DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514
Dimensions
60 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
36 mm
Material
Steel
Material Construction
Carbon Steel
Series
9197 Series
Thread Size
1-5/16-12 x M30x2

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Phil M on Feb 13, 2026, 12:45 PM
Got a 1-5/16 - 12 UN JIC male end on my hydraulic line and need to tie into a M30 X 2.0 metric tube fitting on the other side. This the right adapter for that?
Answer by: Customer Support on Feb 15, 2026, 7:29 AM
That's exactly the crossover this adapter handles. One end is a JIC male at 1-5/16 - 12 UN and the other is a DIN tube female with M30 X 2.0 thread, so if those are your two connection points, this is a straight match. It's made by Adaptall, built from steel, and runs 56.5mm in total length with 36mm wrench width on both sides. No thread sealant needed either, which keeps the install clean and straightforward.
