Mjic-Fem Metric Soft Seal

Description & Features

Crafted from high-quality steel this fitting offers robust performance and durability for demanding applications. The straight connector aligns seamlessly with a variety of fittings providing a reliable seal without the need for additional components.

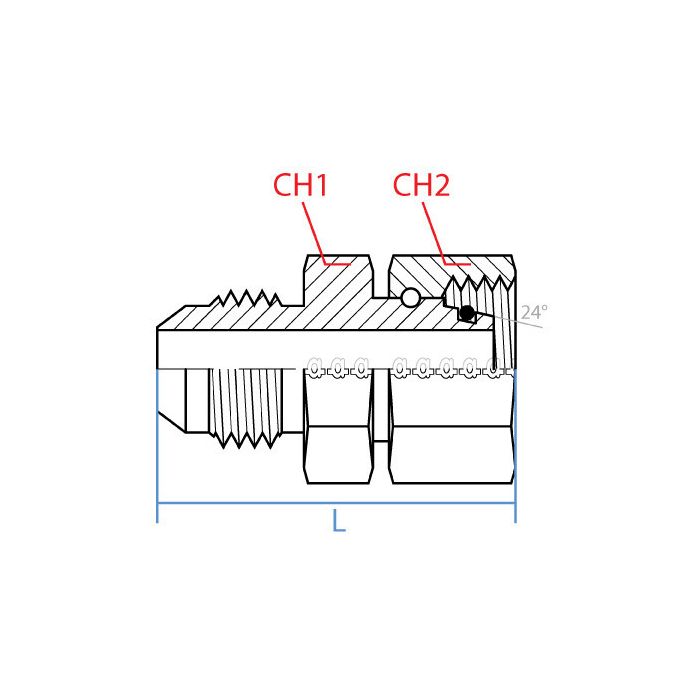

The Mjic-Fem Metric Soft Seal comes with a Jic male 1-5/16 - 12 UN thread on one end complemented by a Din Tube female M36 X 2.0 thread on the opposite end. Measuring 60.7mm in length it ensures a precise and secure fit. The widths of the connector are 36mm (CH1) and 41mm (CH2) designed to meet specific metric standards.

Proudly engineered by Adaptall America this component is ideal for industries requiring metric to 37 flare connections. With a straightforward design this metric soft seal fitting is free from additional adjustable or electrical components emphasizing simplicity and functionality.

Brand: Adaptall America

Supplier Part Number: 9197-16-L28-36

Specifications

CH1 Width 36mm	CH2 Width 41mm	L Length 60.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout M36 X 2.0	Side 2 Gender F	Side 2 Size L28	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07137941, Alternate Part Number MINO-03671X47445	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-16-L28-36	Product Weight 0.64 lbs

Product Questions & Answers (1)

Question by: Ralph S on Dec 21, 2025, 1:02 PM

got a hose end that’s JIC male 1-5/16-12, will this mate up to a metric standpipe with M36 x 2.0 on the other side?

Answer by: Customer Support on Dec 23, 2025, 12:51 PM

For tying a 37 degree flare connection into a metric tube port, this fitting is a straight adapter with JIC male 1-5/16 - 12 UN on one end and a DIN tube female M36 x 2.0 (L28) on the other.
