Mjic-Fem Metric Soft Seal

Description & Features

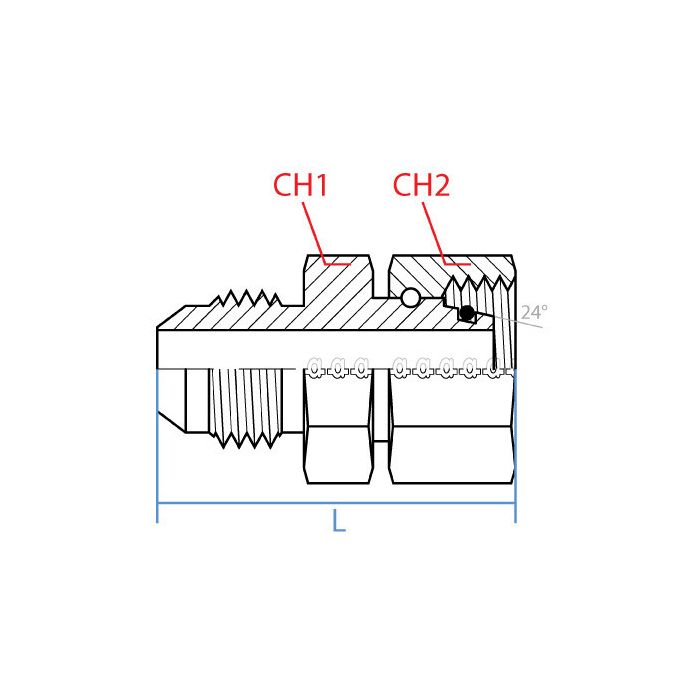

Manufactured by Adaptall America this steel adapter features a straight shape making it ideal for various industrial applications. One end features a 1-7/8 - 12 UN thread with a male JIC type measuring 1-1/2". On the other side it contains an M52 X 2.0 thread with a female Din Tube type measuring S38. The CH1 width is 50mm while the CH2 width extends to 60mm. With a total length of 73.1mm this connector provides durability and reliability. The product is devoid of any adjustable elements color codes or electrical components ensuring straightforward installation and use. MPN: 9197-24-S38-52 Supplier Part Number: 9197-24-S38-52

Specifications

Connection Size 1 1-1/2 in	Connection Size 2 38S	Connection Type Female Metric Swivel, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female DIN Tube Swivel	Dimension Standards DIN 2353, SAE J514	Dimensions 72.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 50 mm, 60 mm	Material Steel	Material Construction Carbon Steel	Series 9197 Series	Thread Size 1-7/8-12 x M52x2

Product Questions & Answers (1)

Question by: Howard H on Oct 28, 2025, 10:41 AM

Will this here adapter work with standard JIC fittings?

Answer by: Customer Support on Oct 30, 2025, 6:30 AM

This Adaptall adapter features a male JIC type on one side, measuring 1-1/2", so it will indeed work with standard JIC fittings of the appropriate size.
