90* Mjic-Fem Metric Soft Seal

Ask A Question

Description & Features

Designed for high-performance connections this 90* Mjic-Fem Metric Soft Seal from Adaptall America ensures reliable and secure joint integrity in industrial settings. Its robust construction from quality steel provides durability and resistance to wear and tear.

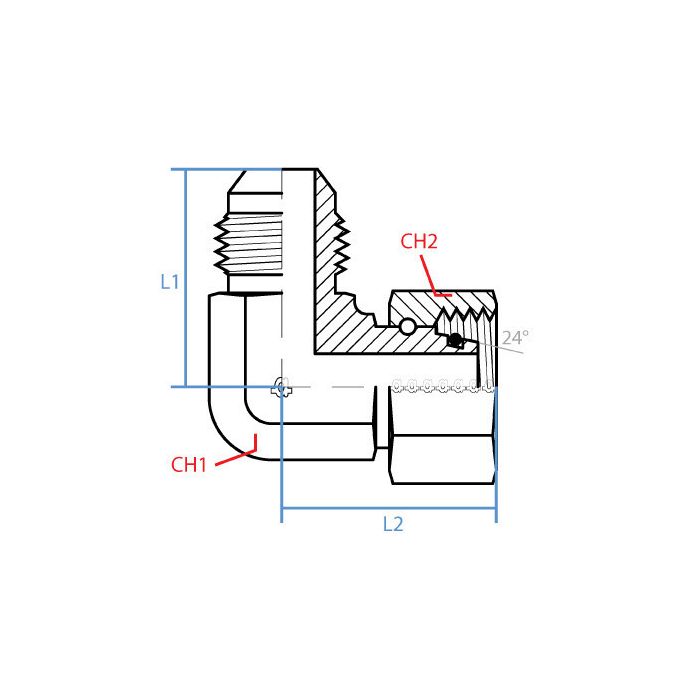

Engineered with precision the 90 elbow shape features a 7/16 - 20 UNF male JIC on one end and an M12 x 1.5 female DIN tube on the other catering effectively to various hydraulic and pneumatic systems. The 14mm CH1 and CH2 widths combined with the 28.8mm L1 and 26.9mm L2 lengths offer precise dimensions for seamless fittings.

No adjustments or calibrations are required allowing for straightforward installation and maintenance. Suitable for professional environments this connector does not include batteries blades or any additional electrical components making it an optimal choice for specialized applications.

Supplier Part Number: 9199-04-L06-12

Specifications

Connection Size 1
1/4 in
Connection Size 2
6 mm
Connection Type
Female Metric Swivel, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female Metric DIN Tube Swivel
Dimension Standards
DIN 2353, SAE J514
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
14 mm
Material
Steel
Material Construction
Carbon Steel
Series
9199 Series
Thread Size
7/16-20 x M12x1.5

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Roy M on Jan 5, 2026, 11:51 AM
Got a line running M12 x 1.5 DIN tube on one end and JIC on the other -- does this fitting bridge that gap in a 90 degree configuration?
Answer by: Customer Support on Jan 6, 2026, 9:40 PM
That's what this one does. One end is a 7/16-20 UNF male JIC and the other is an M12 x 1.5 female DIN tube, all in a 90 degree elbow shape. Steel construction, so it holds up well in industrial hydraulic and pneumatic setups. No adapters or extra hardware needed to make the connection work.
