main product photo

90* Mjic-Fem Metric Soft Seal

Ask A Question

Description & Features

The 90 Mjic-Fem Metric Soft Seal by Adaptall America is an essential fitting designed for industrial applications requiring reliable metric to 37 flare connections. With a steel construction this 90 elbow ensures durability and robust performance under demanding conditions.

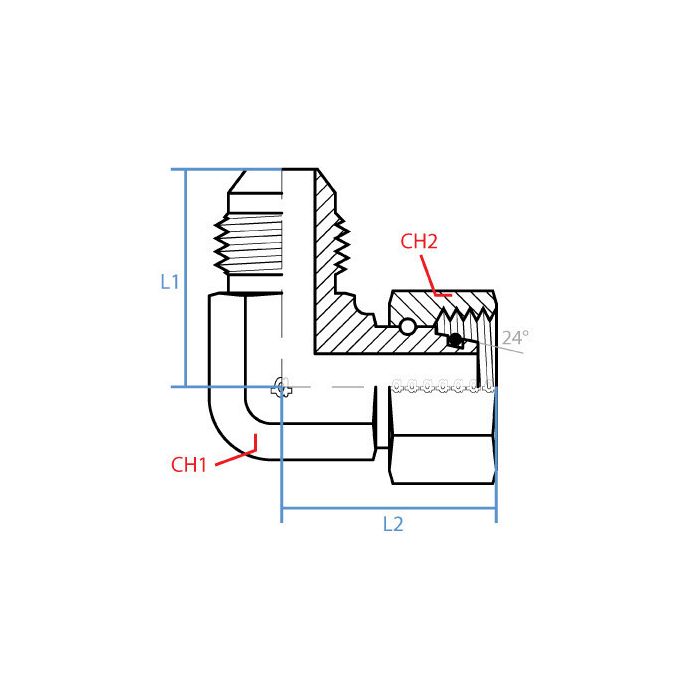

This fitting features a 9/16 - 18 UNF male JIC side perfectly matching with 3/8" measurements. The opposite side is configured with an M14 x 1.5 female DIN tube connection making it versatile for metric systems. Its compact dimensions include a CH1 width of 14mm and a CH2 width of 17mm along with lengths of 27.5mm and 27mm for L1 and L2 respectively.

Built without an adjustable end this fitting guarantees a secure and leak-proof connection. It does not include additional components such as check valves electrical flags or thread sealants maintaining a straightforward yet effective design. The 90 Mjic-Fem Metric Soft Seal offers precision and reliability meeting the high standards of industrial installations.

Supplier Part Number: 9199-06-L08-14

Specifications

Connection Size 1
3/8 in
Connection Size 2
8 mm
Connection Type
Female Metric Swivel, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female Metric DIN Tube Swivel
Dimension Standards
DIN 2353, SAE J514
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
9199 Series
Thread Size
9/16-18 x M14x1.5

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Sherry M on Jul 21, 2025, 9:32 PM
fitting's got a 9/16-18 JIC male on one end and M14 x 1.5 female DIN on the other -- that right?
Answer by: Customer Support on Jul 23, 2025, 6:39 AM
Correct on both counts. The male JIC side runs 9/16-18 UNF, which corresponds to a 3/8" JIC size, and the opposite end is a female M14 x 1.5 DIN tube connection. That combination is exactly what makes this fitting useful when you're bridging a standard SAE 37-degree flare line over to a metric DIN tube system.
