90* Mjic-Fem Metric Soft Seal

Ask A Question

Description & Features

This 90 elbow fitting from Adaptall America is designed for specialized connections in metric systems. Fabricated from high-quality steel it ensures durability and reliability in demanding industrial environments.

The fitting features a male JIC 3/8" side with a 9/16 - 18 UNF thread and a female DIN tube side with an M16 X 1.5 thread. This metric soft seal connector is ideal for precise applications where a secure and leak-free connection is essential.

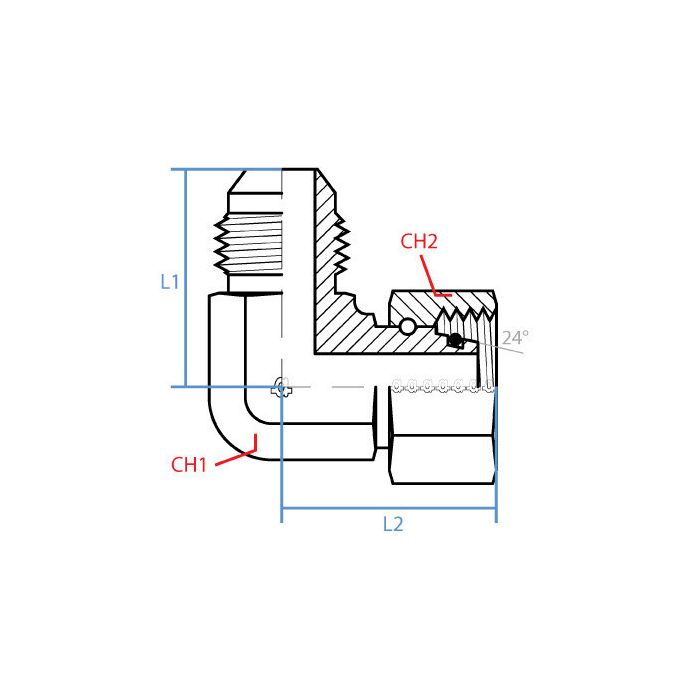

The compact dimensions of the fitting with a CH1 width of 14mm and a CH2 width of 19mm allow for easy integration into existing setups without requiring significant space. The L1 length of 30mm and L2 length of 27mm further contribute to its streamlined design.

Supplier Part Number: 9199-06-L10-16

Specifications

Connection Size 1
3/8 in
Connection Size 2
10 mm
Connection Type
Female Metric Swivel, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female Metric DIN Tube Swivel
Dimension Standards
DIN 2353, SAE J514
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
9199 Series
Thread Size
9/16-18 x M16x1.5

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Eddie H on Aug 5, 2025, 2:24 PM
Will this fitting work for connecting a 3/8" JIC male to an M16 X 1.5 female DIN tube?
Answer by: Customer Support on Aug 7, 2025, 11:37 AM
Yes, this Adaptall fitting is designed to connect a 3/8" JIC male fitting to an M16 X 1.5 female DIN tube.
Question by: Judy M on May 21, 2025, 2:38 PM
fitting's got a male JIC on one end and metric female on the other, that right? just trying to make sure before i order
Answer by: Customer Support on May 22, 2025, 6:09 PM
Correct on both counts. The JIC side is a 3/8" male with a 9/16-18 UNF thread. The other end is a female DIN tube connection at M16 x 1.5. So if you're bridging a standard JIC line over to a metric DIN tube port, this is the piece that does it.
Question by: Donna C on Jun 17, 2025, 8:16 AM
trying to match up fittings here, is this the one with a 3/8 JIC male on one end and M16 x 1.5 female metric on the other?
Answer by: Customer Support on Jun 18, 2025, 9:08 PM
For fit confirmation, the ends are a male JIC 3/8 inch with a 9/16-18 UNF thread on side 1, and a female DIN tube connection with an M16 x 1.5 thread on side 2.
