90* Mjic-Fem Metric Soft Seal

Description & Features

A 90-degree elbow adapter designed for use in hydraulic systems requiring a transition between JIC and metric DIN tube connections, this 90° Mjic-Fem Metric Soft Seal is manufactured by Adaptall from steel for reliable performance in demanding industrial applications. The male JIC side features a 9/16–18 UNF thread (3/8" nominal size), while the female metric side connects at M18 x 1.5 (S10 DIN tube). The soft seal configuration on the metric side provides a leak-resistant face seal without requiring additional sealant.

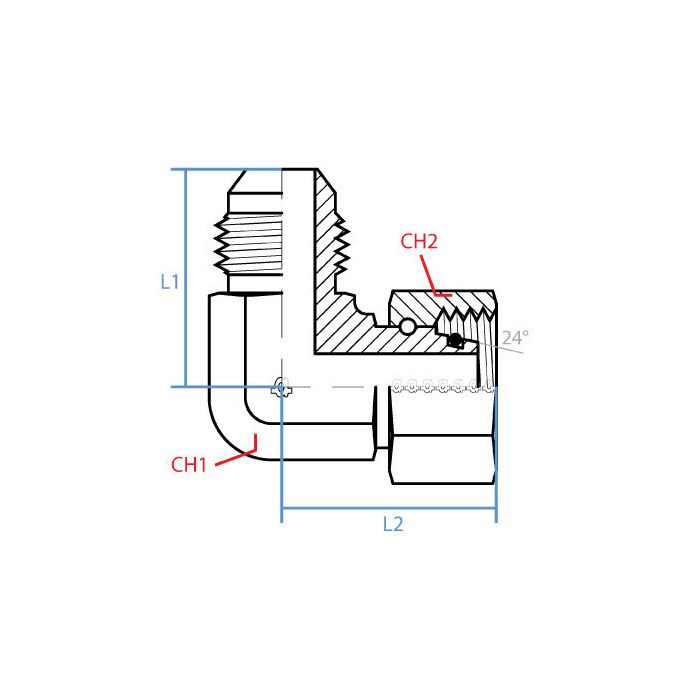

The 90-degree elbow profile, with an L1 length of 29.4mm and L2 length of 27mm, suits installations where routing space is limited or a directional change is needed at the connection point. Wrench flats measure 14mm on the JIC side and 22mm on the metric side, supporting standard tooling during assembly.

SKU: 9199-06-S10-18

Supplier Part Number (MPN): 9199-06-S10-18

Alternate Part Numbers: MI-08022270, MINO-03671X87451

Specifications

CH1 Width 14mm	CH2 Width 22mm	L1 Length 29.4mm	L2 Length 27mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size S10	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08022270, Alternate Part Number MINO-03671X87451	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-06-S10-18	Product Weight 0.18 lbs

Product Questions & Answers (1)

Question by: Neal F on Jul 25, 2025, 9:15 AM

Will this fitting work with a standard metric tube?

Answer by: Customer Support on Jul 26, 2025, 11:23 AM

This 90-degree elbow adapter is designed to connect a 9/16 - 18 UNF JIC fitting to an M18 X 1.5 DIN tube, which is a type of metric tube connection.
