90* Mjic-Fem Metric Soft Seal

Description & Features

The 90* Mjic-Fem Metric Soft Seal by Adaptall America is a robust solution designed for precise and reliable fluid transfer in industrial applications. This 90 elbow connector features a steel construction ensuring durability and long-lasting performance.

It has a 3/4 - 16 UNF male JIC thread on Side 1 with a 1/2" size and an M18 X 1.5 female metric soft seal DIN tube connection on Side 2 with an L12 size. The width across flats on Side 1 is 19mm and on Side 2 it is 22mm making installation straightforward and secure.

The 90* Mjic-Fem Metric Soft Seal is suitable for high-pressure environments and provides a leak-proof seal without the need for additional thread sealant. This connector is engineered for performance in demanding industrial fluid handling tasks.

With its precision design and adherence to stringent industry standards it ensures optimal connectivity and fluid flow management. The compact design with lengths of 31mm on both sides offers versatility in tight spaces without compromising functionality or integrity.

Supplier Part Number: 9199-08-L12-18

MPN: 9199-08-L12-18

Specifications

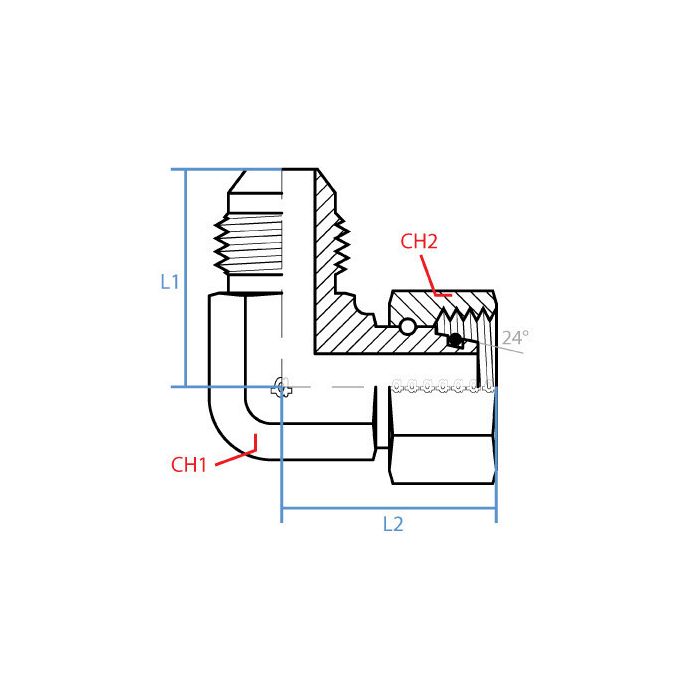

CH1 Width 19mm	CH2 Width 22mm	L1 Length 31mm	L2 Length 31.3mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size L12	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08022592, Alternate Part Number MINO-03671X00402	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-08-L12-18	Product Weight 0.25 lbs

Product Questions & Answers (1)

Question by: Todd E on Jan 1, 2026, 7:07 AM

Will this fitting hold up alright in a hydraulic system that sees some pretty high pressure?

Answer by: Customer Support on Jan 2, 2026, 10:53 AM

Constructed from steel, this fitting is designed to handle high-pressure environments commonly found in industrial hydraulic systems. Its robust build should provide reliable performance.
