90* Mjic-Fem Metric Soft Seal

Description & Features

ADAPTALL America's 90 elbow adapter offers robust and reliable connections for industrial applications. Designed with a 7/8 - 14 UNF male JIC fitting on one end and an M22 x 1.5 female DIN tube fitting on the other it ensures precise and secure metric soft seal connections.

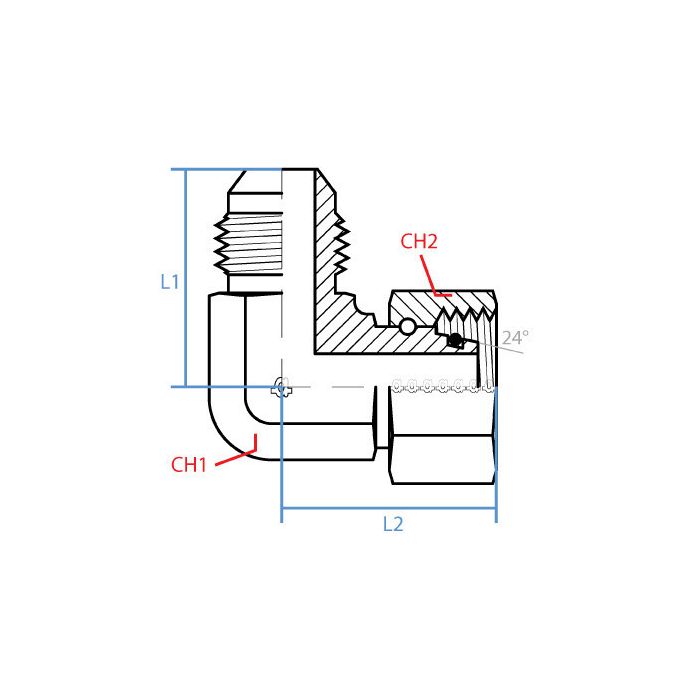

Constructed from durable steel it has a width of 22mm and 27mm for CH1 and CH2 respectively and lengths of 34.3mm and 36.8mm for L1 and L2.

Ideal for various industrial settings this adapter meets stringent standards without including additional features like battery or check valves.

Supplier Part Number: 9199-10-L15-22

Specifications

CH1 Width 22mm	CH2 Width 27mm	L1 Length 34.3mm	L2 Length 36.8mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M22 X 1.5	Side 2 Gender F	Side 2 Size L15	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07178056, Alternate Part Number MINO-03671X36889	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-10-L15-22	Product Weight 0.40 lbs

Product Questions & Answers (2)

Question by: Vince H on Apr 6, 2025, 3:11 PM

Will this here fitting work to connect a 7/8-14 UNF male JIC to a M22 x 1.5 female DIN?

Answer by: Customer Support on Apr 8, 2025, 6:42 AM

That's what this Adaptall adapter is designed for: connecting a 7/8 - 14 UNF male JIC fitting to an M22 x 1.5 female DIN tube fitting.

Question by: Earl W on May 4, 2025, 6:26 AM

got a machine running 5/8 JIC lines that feeds into metric fittings and the 90 degree turn would clean up the routing real nice. this the right piece for that?

Answer by: Customer Support on May 6, 2025, 6:50 AM

For a 5/8 JIC male side connecting to an M22 x 1.5 female DIN tube fitting, yes, that's exactly what this adapter covers. The 90 degree elbow shape lets you redirect the line without adding extra fittings or forcing a bend in the hose, which keeps things tighter and cleaner in tight routing situations. It's steel construction, so it holds up in standard industrial hydraulic environments without much fuss.
