90* Mjic-Fem Metric Soft Seal

Description & Features

The 90 elbow design of this component ensures ease of connectivity in space-constrained environments. Constructed with robust steel this part guarantees durability and reliability in various industrial settings.

Features a 7/8 - 14 UNF male JIC fitting on Side 1 and a M24 X 1.5 female Din Tube on Side 2 allowing versatile integration with existing systems.

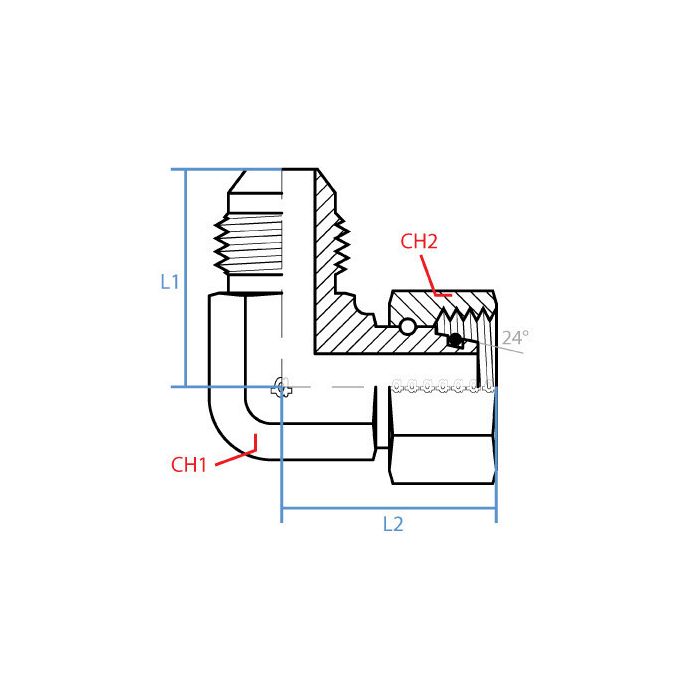

Dimensional specifics include CH1 width of 22mm CH2 width of 30mm L1 length of 36.4mm and L2 length of 36.8mm contributing to optimal performance in precise applications.

Product Part Number: 9199-10-S16-24

Specifications

CH1 Width 22mm	CH2 Width 30mm	L1 Length 36.4mm	L2 Length 36.8mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M24 X 1.5	Side 2 Gender F	Side 2 Size S16	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08022595, Alternate Part Number MINO-03671X00404	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-10-S16-24	Product Weight 0.46 lbs

Product Questions & Answers (1)

Question by: Ralph W on Sep 24, 2025, 2:11 PM

What size is that JIC fitting on this elbow?

Answer by: Customer Support on Sep 25, 2025, 6:19 PM

The JIC side of this elbow is a 5/8 inch, 7/8 - 14 UNF male fitting.
