90* Mjic-Fem Metric Soft Seal

Description & Features

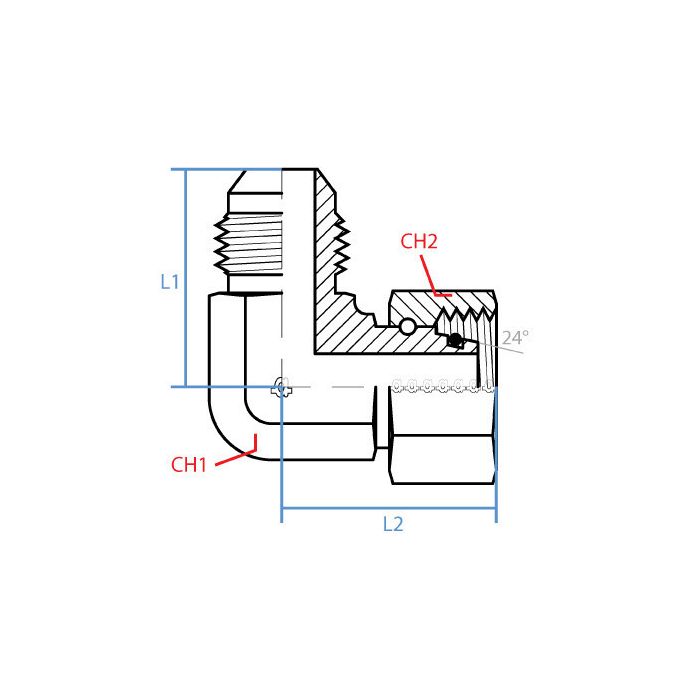

The 90 Mjic-Fem Metric Soft Seal is engineered with precision for specialized industrial applications. Manufactured by Adaptall America this connector features a durable 90 elbow shape constructed from high-quality steel. The first side has a 27mm width with a 1-1/16 - 12 UN thread type and a male gender offering a 3/4" JIC size. The second side with a width of 32mm uses an M26 X 1.5 DIN tube thread type and a female gender corresponding to an L18 size.

Supplier Part Number: 9199-12-L18-26

Specifications

Connection Size 1 3/4 in	Connection Size 2 18 mm	Connection Type Female Metric Swivel, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female Metric DIN Tube Swivel	Dimension Standards DIN 2353, SAE J514	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	Series 9199 Series	Thread Size 1-1/16-12 x M26x1.5

Product Questions & Answers (2)

Question by: Clint C on Jun 7, 2025, 8:30 PM

Will this fitting hold up alright for hydraulic fluid?

Answer by: Customer Support on Jun 9, 2025, 8:53 AM

This 90-degree elbow fitting is made from steel, so it should be compatible with most common hydraulic fluids.

Question by: Brenda C on May 3, 2025, 12:34 PM

what's the thread setup on both ends of this fitting? trying to figure out if it'll work with my JIC line going into a metric port

Answer by: Customer Support on May 5, 2025, 6:44 AM

One end is a 3/4" JIC male with a 1-1/16-12 UN thread, and the other is a female metric DIN tube port sized at M26 x 1.5, which corresponds to an L18 designation. So yeah, it bridges a standard JIC hydraulic line over to a metric DIN tube connection, all in a 90-degree elbow configuration. Steel construction throughout.
