90* Mjic-Fem Metric Soft Seal

Description & Features

This 90 elbow fitting is designed for industrial hydraulic applications requiring reliable connections. Manufactured by Adaptall America this fitting is built from durable steel ensuring long-term performance. It features a 1-5/16 - 12 UN male JIC thread on Side 1 and an M30 X 2.0 female DIN tube on Side 2.

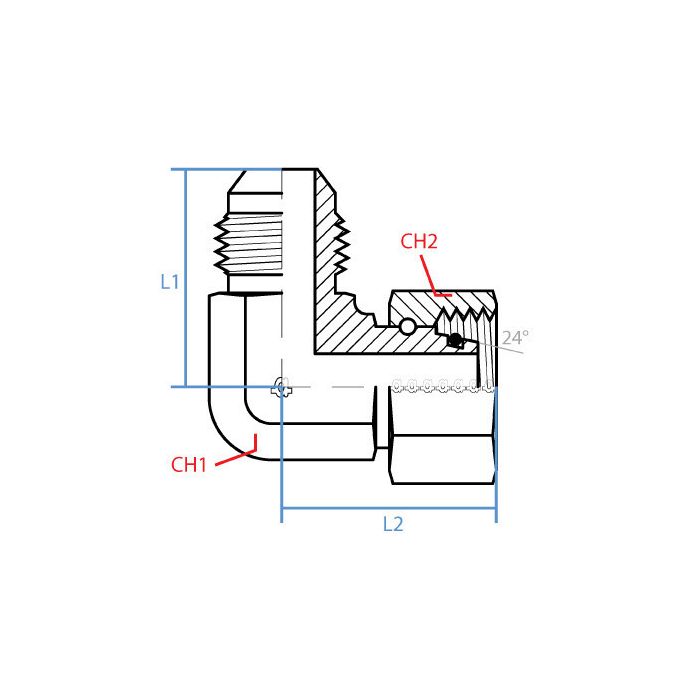

With a 33mm width on CH1 and a 36mm width on CH2 this fitting is engineered to precise dimensions for optimal fit. The overall length from L1 to L2 measures 39.7mm and 46mm respectively making it a versatile component in various hydraulic assemblies.

This component is not adjustable and does not include a check valve thread sealant or any electrical components maintaining its focus on robust mechanical performance.

Supplier Part Number: 9199-16-L22-30

Specifications

CH1 Width 33mm	CH2 Width 36mm	L1 Length 39.7mm	L2 Length 46mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout M30 X 2.0	Side 2 Gender F	Side 2 Size L22	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08022598, Alternate Part Number MINO-03671X00407	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-16-L22-30	Product Weight 0.93 lbs
