90* Mjic-Fem Metric Soft Seal

Ask A Question

Description & Features

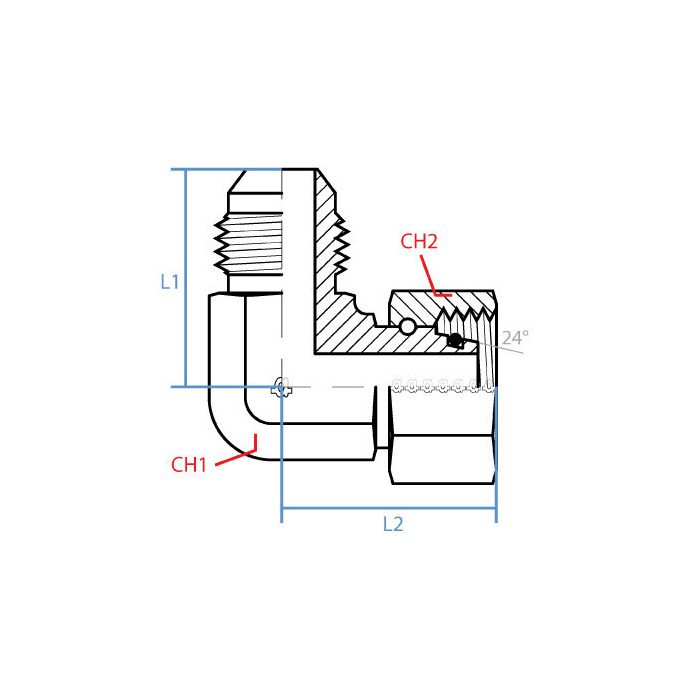

Constructed with precision this steel 90 elbow fitting is designed for industry-specific applications. Featuring a Jic male connection with a size of 1-5/16 - 12 UN on Side 1 and a Din Tube female connection with a size of M36 X 2.0 on Side 2 this product ensures a reliable secure connection.

With a CH1 Width of 33mm and a CH2 Width of 41mm the detailed dimensions contribute to its reliable performance. The L1 length is 42.7mm while L2 measures 46mm.

This robust component by Adaptall America is built for applications demanding high durability and exact specifications.

Brand: Adaptall America

Supplier Part Number: 9199-16-L28-36

Specifications

Connection Size 1
1 in
Connection Type
Female Metric Swivel, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female Metric DIN Tube Swivel
Dimension Standards
DIN 2353, SAE J514
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
41 mm, 33 mm
Material
Steel
Material Construction
Carbon Steel
Series
9199 Series
Thread Size
1-5/16-12 x M36x2

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Ross R on Aug 17, 2025, 1:14 PM
fitting's got a 1-5/16-12 UN on one end and i need to hook into an M36 x 2.0 metric port, this the right piece for that?
Answer by: Customer Support on Aug 18, 2025, 3:36 PM
That's what this fitting is built to do. One side is a male JIC at 1-5/16-12 UN and the other is a female DIN Tube metric connection at M36 x 2.0. The 90 degree elbow shape lets you make that transition while also redirecting your line, which comes in real handy when you're working in tight quarters or need to avoid a straight-run interference.
